45* Din X Male Bspp Adjustable

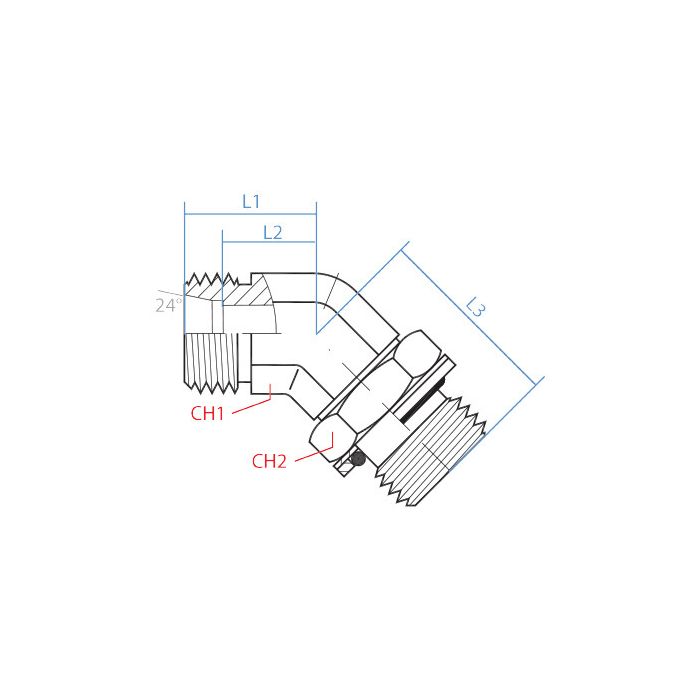

CH1 Width 22mm	CH2 Width 27mm	L1 Length 24mm	L2 Length 16mm	L3 Length 40mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout M22 X 1.5	Side 1 Gender M	Side 1 Size S14	Side 1 Type Din Tube	Side 2 Callout G 1/2 - 14	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5058S-14-08	Product Weight 0.40 lbs

Product Questions & Answers 1

Product Questions & Answers

trying to hook a DIN tube line into a BSPP port at a 45, is this the right kind of adapter?

Question by: Marvin E on Jul 7, 2025, 8:10 PM

For tying those two standards together at an angle, it fits the bill. One end is an M22 x 1.5 DIN tube male connection, and the other end is a G 1/2-14 male BSPP thread in a 45 degree elbow body.

Answer by: Customer Support on Jul 9, 2025, 8:52 AM
