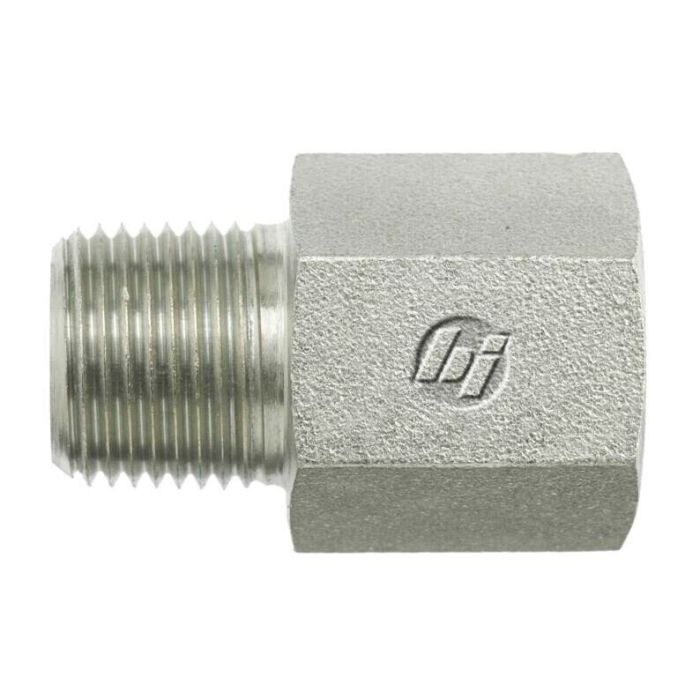

#1 MP X #2 FP

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 5405-01-02	Product Weight 0.06 lbs

Product Questions & Answers 3

Product Questions & Answers

Just want to make sure I'm readin' this right - this here fitting goes from a 1/16" male to a 1/8" female?

Question by: Daryl W on Aug 23, 2025, 6:17 AM

That's right. It adapts from a 1/16-27 Male NPTF thread to a 1/8-27 Female NPTF thread, using the SAE J476 specification for the threading.

Answer by: Customer Support on Aug 24, 2025, 9:04 PM

What's the thread setup on this fitting, both ends?

Question by: Pete R on Mar 30, 2026, 9:09 PM

One end is a 1/16-27 Male NPTF and the other is a 1/8-27 Female NPTF. Both threads are built to SAE J476 spec. The male side has a drill size of 0.117 mm and the female side runs 0.188 mm, so you're stepping up in size going from the male to the female end. That's what makes it an expander rather than a straight union.

Answer by: Customer Support on Apr 1, 2026, 6:52 AM

trying to step up from 1/16 NPTF to 1/8 NPTF, is that what this expander does?

Question by: Donna L on Aug 4, 2025, 3:16 PM

Function-wise, it is a straight steel expander that transitions from a 1/16-27 Male NPTF on one end to a 1/8-27 Female NPTF on the other, both to SAE J476.

Answer by: Customer Support on Aug 6, 2025, 8:00 AM
