Adaptall 45* Din X Male Bspp Adjustable 5058S-12-06

Specifications

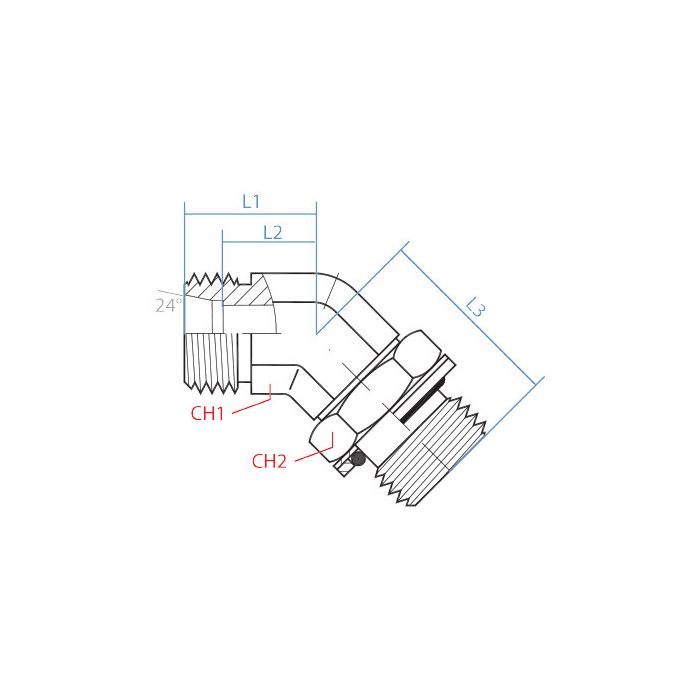

CH1 Width 19mm	CH2 Width 24mm	L1 Length 21mm	L2 Length 13.5mm	L3 Length 34mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout M20 X 1.5	Side 1 Gender M	Side 1 Size S12	Side 1 Type Din Tube	Side 2 Callout G 3/8 - 19	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5058S-12-06	Product Weight 0.21 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to swap an elbow out, what exactly are the two ends on this one?

Question by: Neil F on Oct 21, 2025, 7:06 AM

On the DIN tube side it is a male M20 x 1.5 connection in size S12, and the other end is a male BSPP thread G 3/8 - 19 in 3/8 inch size.

Answer by: Customer Support on Oct 23, 2025, 6:10 AM

What kind of material is this fitting made outta? Need something that can hold up.

Question by: Jimmy M on Feb 23, 2026, 8:44 PM

Steel construction ensures this adjustable elbow can handle demanding hydraulic applications without issue.

Answer by: Customer Support on Feb 25, 2026, 6:15 AM

What kind of thread is on each end of this fitting, are both sides metric or is one of 'em standard pipe?

Question by: Hugh R on Oct 13, 2025, 12:27 PM

One side is DIN tube with an M20 x 1.5 metric thread, sized at S12. The other side is a male BSPP connection, G 3/8 - 19, which is a British Standard Parallel Pipe thread at 3/8 inch. So no, they are not the same standard. That combination is exactly the point of this adapter, letting you bridge a DIN tube line over to a BSPP port without needing extra pieces in between.

Answer by: Customer Support on Oct 14, 2025, 4:13 PM
