Din-Fdin Swivel Run Tee Comple

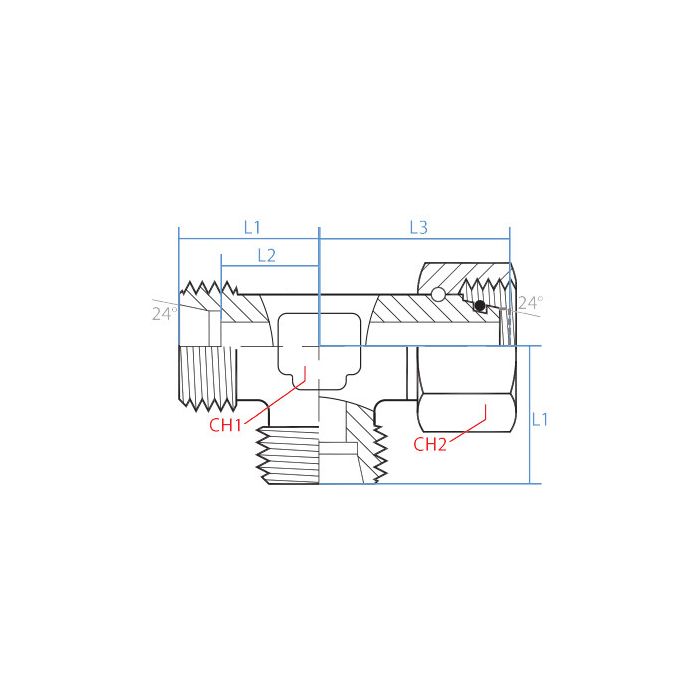

CH1 Width 41mm	CH2 Width 50mm	L1 Length 49mm	L2 Length 35.5mm	L3 Length 55mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout M42 X 2.0	Side 1 Gender M	Side 1 Size S30	Side 1 Type Din Tube	Side 2 Callout M42 X 2.0	Side 2 Gender M	Side 2 Size S30	Side 2 Type Din Tube	Side 3 Callout M42 X 2.0	Side 3 Gender F	Side 3 Size S30	Side 3 Type DIN TUBE	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5390S-30C	Product Weight 2.11 lbs

Product Questions & Answers 2

Product Questions & Answers

All three ports on this thing are M42 x 2.0, S30, so if I'm running the same size DIN tube connections throughout my system, this'll tie right in without needing extra adapters?

Question by: Wade P on Feb 16, 2026, 7:09 PM

Correct on the thread spec. All three sides share the M42 x 2.0 callout at S30 sizing, so if your existing lines are already set up for that DIN tube standard, you won't need to step up or down anywhere in the connection. Two of the ports are male and the third is female, so just make sure your line ends match accordingly before you order.

Answer by: Customer Support on Feb 18, 2026, 8:11 AM

So, this here tee fitting, it's all steel, right? Just want to double check before I order it.

Question by: Tommy R on Jan 18, 2026, 4:16 PM

Correct, this DIN-Fdin Swivel Run Tee Comple is made entirely of steel.

Answer by: Customer Support on Jan 20, 2026, 6:50 AM
