Din-Fdin Swivel Run Tee Comple

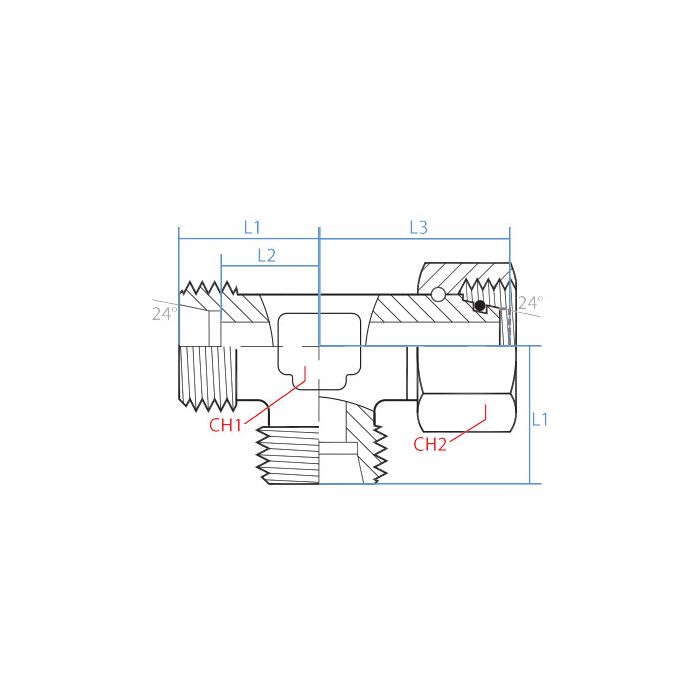

CH1 Width 37mm	CH2 Width 46mm	L1 Length 42mm	L2 Length 30mm	L3 Length 50mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout M36 X 2.0	Side 1 Gender M	Side 1 Size S25	Side 1 Type Din Tube	Side 2 Callout M36 X 2.0	Side 2 Gender M	Side 2 Size S25	Side 2 Type Din Tube	Side 3 Callout M36 X 2.0	Side 3 Gender F	Side 3 Size S25	Side 3 Type DIN TUBE	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5390S-25C	Product Weight 1.67 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this tee fitting work with standard DIN tubing, or are there specific requirements I need to know about?

Question by: Lynn W on Feb 25, 2026, 2:08 PM

This tee fitting is designed for use with standard DIN tube systems, specifically those with M36 X 2.0 connections. Both Side 1 and Side 2 are male (M36 X 2.0, S25), and Side 3 is female (M36 X 2.0, S25).

Answer by: Customer Support on Feb 26, 2026, 4:12 PM

trying to replace a tee on my DIN tube setup, are all three ports on this one M36 x 2.0 S25?

Question by: Ricky Y on May 6, 2025, 1:13 PM

All three sides are DIN tube connections with an M36 x 2.0 thread and size S25. Side 1 and Side 2 are male, and Side 3 is female, so it matches a run tee layout with two male ends and one female swivel end.

Answer by: Customer Support on May 7, 2025, 5:47 PM
