Din-Fdin Swivel Run Tee Comple

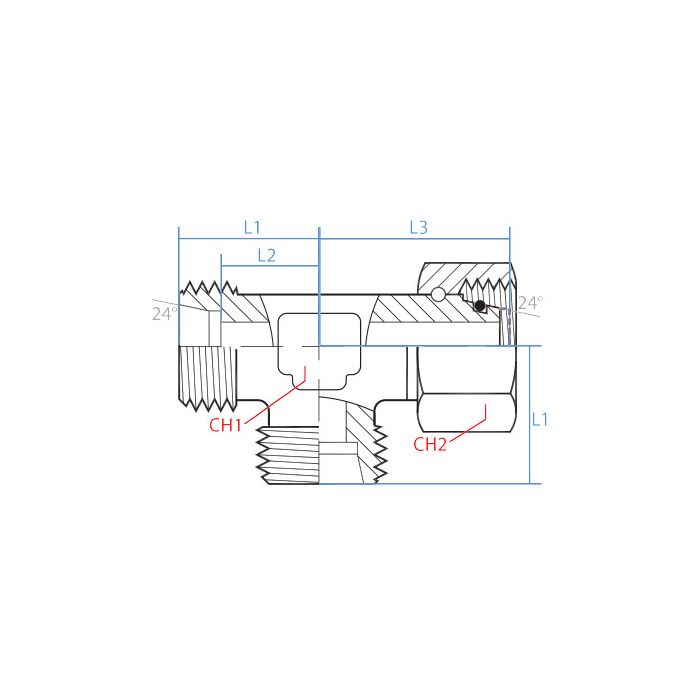

CH1 Width 19mm	CH2 Width 27mm	L1 Length 30mm	L2 Length 22mm	L3 Length 35mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout M22 X 1.5	Side 1 Gender M	Side 1 Size S14	Side 1 Type Din Tube	Side 2 Callout M22 X 1.5	Side 2 Gender M	Side 2 Size S14	Side 2 Type Din Tube	Side 3 Callout M22 X 1.5	Side 3 Gender F	Side 3 Size S14	Side 3 Type DIN TUBE	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5390S-14C	Product Weight 0.43 lbs

Product Questions & Answers 2

Product Questions & Answers

Is this run tee made of steel all the way through? Gotta make sure it can handle what I'm throwin' at it.

Question by: Duane S on Jan 6, 2026, 10:20 AM

Constructed from durable steel, this tee fitting is designed for strength in demanding hydraulic systems.

Answer by: Customer Support on Jan 7, 2026, 3:57 PM

Got a line that splits off in two directions and I need to tie into an existing DIN tube setup, this tee got male ends on both run sides?

Question by: Neal W on Aug 1, 2025, 12:44 PM

Both run sides are male, M22 x 1.5 thread on each, sized at S14. The branch side comes in as female, same thread and size. So if you're running into an existing DIN tube line and need to split or branch off, the configuration works for that pretty naturally. All three ports share that M22 x 1.5 callout, so you're not mixing thread specs across the fitting.

Answer by: Customer Support on Aug 2, 2025, 6:21 PM
