Din-Fdin Swivel Run Tee Comple 5390S-12C

Specifications

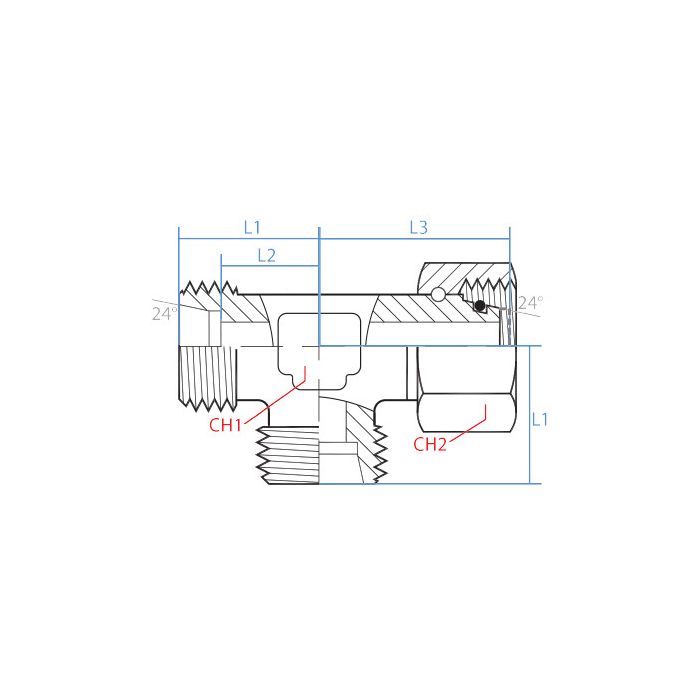

CH1 Width 17mm	CH2 Width 24mm	L1 Length 29mm	L2 Length 21.5mm	L3 Length 31mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout M20 X 1.5	Side 1 Gender M	Side 1 Size S12	Side 1 Type Din Tube	Side 2 Callout M20 X 1.5	Side 2 Gender M	Side 2 Size S12	Side 2 Type Din Tube	Side 3 Callout M20 X 1.5	Side 3 Gender F	Side 3 Size S12	Side 3 Type DIN TUBE	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5390S-12C	Product Weight 0.35 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to tie three DIN tube lines together, is this tee the one with two male ends and one female?

Question by: Earl F on Feb 14, 2026, 8:50 PM

For a three-way DIN tube hookup, it gives you two male DIN tube connections and one female DIN tube connection. All three sides are M20 x 1.5 and size S12, so it is meant to join three lines with that same DIN tube size and thread.

Answer by: Customer Support on Feb 16, 2026, 9:50 AM

All three sides on this thing are M20 x 1.5 thread, that right? Just want to make sure before I go orderin it.

Question by: Jean W on Sep 13, 2025, 5:34 PM

all three connections share the same M20 x 1.5 thread spec and S12 size designation. Two sides are male DIN tube and the third is female DIN tube, so the thread size stays consistent across the whole fitting. Makes it a straightforward swap if you're working in a system already running that thread standard.

Answer by: Customer Support on Sep 14, 2025, 8:27 PM

Reckon this tee fitting will hold up alright in a hydraulic system for a log splitter?

Question by: Harold M on Jul 13, 2025, 8:18 PM

Built from steel, this Adaptall tee fitting should work just fine for that application. Just be sure the M20 x 1.5 thread size and S12 size are compatible with your splitter's hydraulic lines.

Answer by: Customer Support on Jul 15, 2025, 12:24 PM
