Din-Fdin Swivel Run Tee Comple 5390S-10C

Specifications

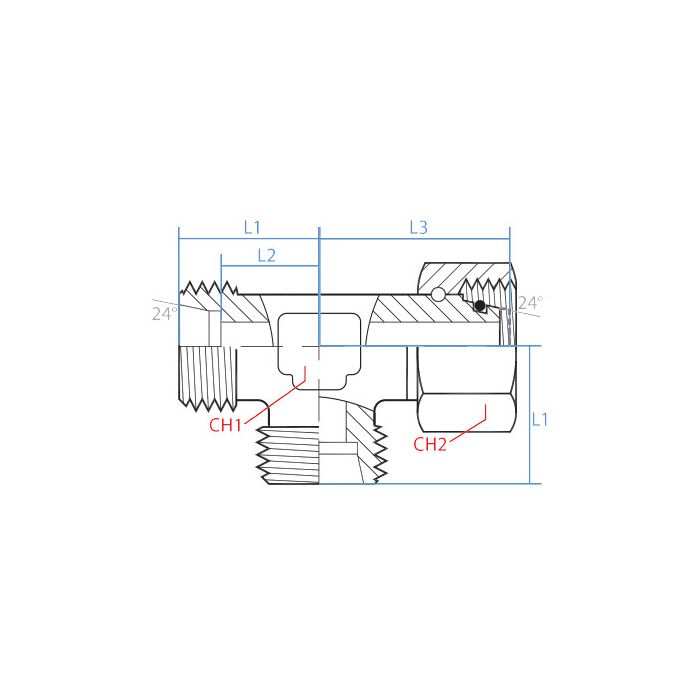

CH1 Width 17mm	CH2 Width 22mm	L1 Length 25mm	L2 Length 17.5mm	L3 Length 30mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout M18 X 1.5	Side 1 Gender M	Side 1 Size S10	Side 1 Type Din Tube	Side 2 Callout M18 X 1.5	Side 2 Gender M	Side 2 Size S10	Side 2 Type Din Tube	Side 3 Callout M18 X 1.5	Side 3 Gender F	Side 3 Size S10	Side 3 Type DIN TUBE	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5390S-10C	Product Weight 0.27 lbs

Product Questions & Answers 3

Product Questions & Answers

Got a tight routing situation where I can't really spin a fitting into place once the lines are run, would the swivel on the branch port here actually help with that?

Question by: Darryl S on Sep 24, 2025, 9:58 PM

That swivel branch is exactly what makes this fitting worth grabbing for those kinds of spots. The two run ports are fixed male DIN ends, but the branch port is a female DIN swivel, so you can get it threaded in and then rotate that branch connection to meet your line without having to torque the whole assembly into position. All three ports are M18 x 1.5 on S10 tube, so as long as your hydraulic connections matches that, the swivel takes a lot of the frustration out of a cramped install.

Answer by: Customer Support on Sep 26, 2025, 5:34 PM

Will this tee fitting work with standard DIN tube sizes?

Question by: Rod W on Jun 16, 2025, 2:07 PM

This fitting is specifically designed for S10 hydraulic tube connections that are threaded at M18 x 1.5, adhering to DIN standards for that size.

Answer by: Customer Support on Jun 17, 2025, 9:11 PM

trying to tie into an S10 DIN tube setup here, are all three ports on this tee M18 x 1.5?

Question by: Bobby K on Dec 16, 2025, 6:24 PM

For S10 DIN tube connections, all three ports use the same M18 x 1.5 thread. The run has two male DIN tube ends, and the branch is a female DIN tube swivel, all in that same size and thread.

Answer by: Customer Support on Dec 18, 2025, 5:38 PM
