Din-Fdin Swivel Run Tee Comple

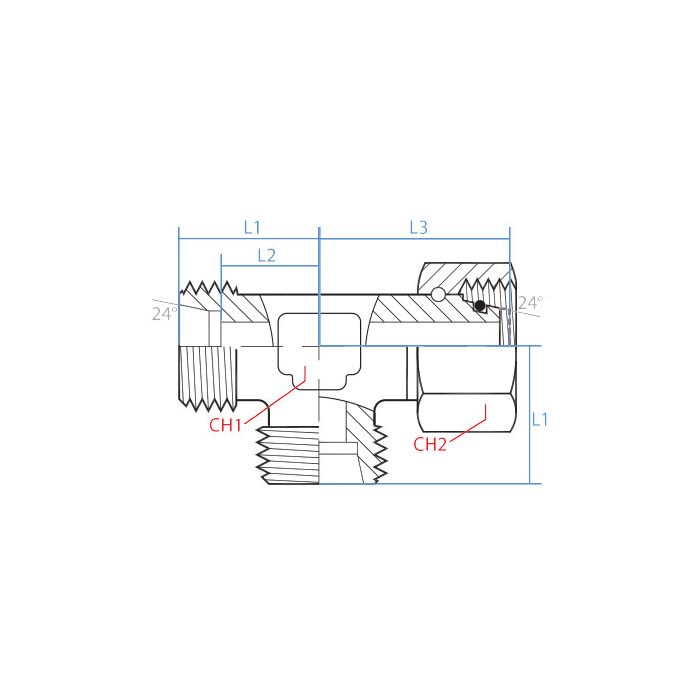

CH1 Width 12mm	CH2 Width 17mm	L1 Length 23mm	L2 Length 16mm	L3 Length 27mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout M14 X 1.5	Side 1 Gender M	Side 1 Size S06	Side 1 Type Din Tube	Side 2 Callout M14 X 1.5	Side 2 Gender M	Side 2 Size S06	Side 2 Type Din Tube	Side 3 Callout M14 X 1.5	Side 3 Gender F	Side 3 Size S06	Side 3 Type DIN TUBE	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5390S-06C	Product Weight 0.16 lbs

Product Questions & Answers 1

Product Questions & Answers

Will this fitting work with standard DIN tube fittings I already have?

Question by: Rick G on Oct 16, 2025, 6:26 PM

This fitting is configured as a swivel run tee and connects three M14 x 1.5 DIN tube ports. All three ports (two male, one female) are built around consistent S06 sizing, so it should work seamlessly with other S06-sized DIN tube fittings.

Answer by: Customer Support on Oct 18, 2025, 8:33 AM
