Din-Fdin Swivel Run Tee Comple 5390L-18C

Specifications

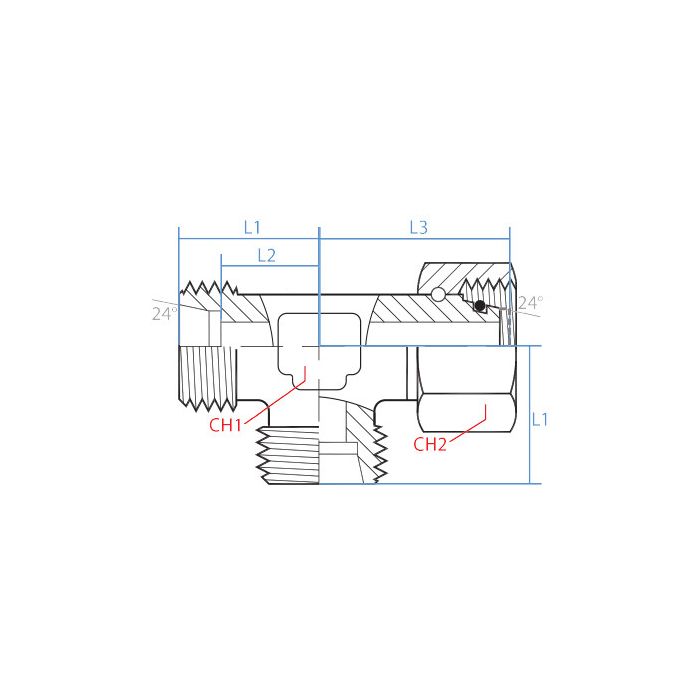

CH1 Width 24mm	CH2 Width 32mm	L1 Length 31mm	L2 Length 23.5mm	L3 Length 35.5mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout M26 X 1.5	Side 1 Gender M	Side 1 Size L18	Side 1 Type Din Tube	Side 2 Callout M26 X 1.5	Side 2 Gender M	Side 2 Size L18	Side 2 Type Din Tube	Side 3 Callout M26 X 1.5	Side 3 Gender F	Side 3 Size L18	Side 3 Type DIN TUBE	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5390L-18C	Product Weight 0.62 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to swap out a tee on a DIN tube line, are all three ports on this one M26 x 1.5 and is one side female?

Question by: Kurt W on Mar 18, 2026, 6:32 PM

All three connections are M26 x 1.5 for DIN tube setups. Side 1 and Side 2 are male, and Side 3 is female, all in size L18.

Answer by: Customer Support on Mar 20, 2026, 6:09 AM

What kind of hydraulic setups does this tee fitting work best with?

Question by: Terry R on Oct 18, 2025, 2:33 PM

This tee fitting is designed for hydraulic systems needing strong steel parts and DIN tube connections.

Answer by: Customer Support on Oct 20, 2025, 6:39 AM

What's the thread size on all three ports of this tee fitting?

Question by: Jerry S on Apr 20, 2025, 12:10 PM

All three sides run M26 x 1.5 thread and are sized at L18, so you're working with the same spec across the board. Two of the ports are male DIN tube connections and the third is female, which is what gives you that mix-and-match flexibility when you're routing lines through a tight hydraulic setup.

Answer by: Customer Support on Apr 22, 2025, 11:42 AM
