Din X F Din Swivel Run Tee

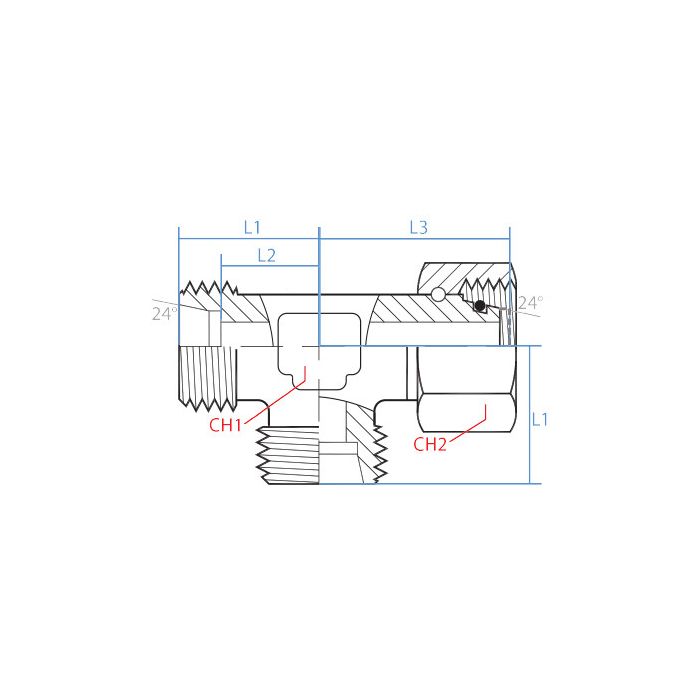

CH1 Width 24mm	CH2 Width 32mm	L1 Length 31mm	L2 Length 23.5mm	L3 Length 35.5mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout M26 X 1.5	Side 1 Gender M	Side 1 Size L18	Side 1 Type Din Tube	Side 2 Callout M26 X 1.5	Side 2 Gender M	Side 2 Size L18	Side 2 Type Din Tube	Side 3 Callout M26 X 1.5	Side 3 Gender F	Side 3 Size L18	Side 3 Type DIN TUBE	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5390L-18	Product Weight 0.62 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this tee work for connecting three M26 x 1.5 DIN tubes?

Question by: Rusty H on Dec 13, 2025, 3:33 PM

Yes, that's exactly what it's for. This Adaptall tee is designed to connect three M26 x 1.5 DIN tubes in a hydraulic system. Two of the connections are male, and one is a female swivel.

Answer by: Customer Support on Dec 15, 2025, 8:03 AM

trying to tee off a DIN tube line, are all three ports on this one M26 x 1.5 and size L18?

Question by: Janet K on Mar 21, 2026, 4:23 PM

For a branch-line tee in a DIN tube setup, it gives you three matching ports: Side 1 is M26 x 1.5 male DIN tube (L18), Side 2 is M26 x 1.5 male DIN tube (L18), and Side 3 is M26 x 1.5 female DIN tube swivel (L18).

Answer by: Customer Support on Mar 23, 2026, 6:04 AM
