Din X F Din Swivel Branch Tee 5387S-16

Specifications

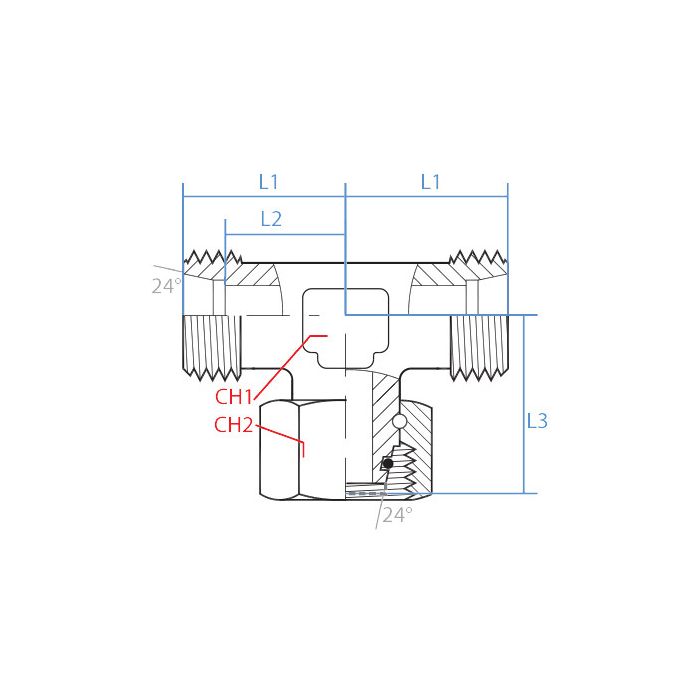

CH1 Width 24mm	CH2 Width 30mm	L1 Length 33mm	L2 Length 24.5mm	L3 Length 36.5mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout M24 X 1.5	Side 1 Gender M	Side 1 Size S16	Side 1 Type Din Tube	Side 2 Callout M24 X 1.5	Side 2 Gender M	Side 2 Size S16	Side 2 Type Din Tube	Side 3 Callout M24 X 1.5	Side 3 Gender F	Side 3 Size S16	Side 3 Type DIN TUBE	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5387S-16	Product Weight 0.68 lbs

Product Questions & Answers 3

Product Questions & Answers

Hey, will this tee fitting work with standard DIN connections I already got setup?

Question by: Lyle G on Dec 13, 2025, 8:29 PM

Yes, it's designed to connect directly to other DIN tube ends, making it suitable for branching off from an existing DIN tube run. All three ports are M24 x 1.5, so you should have no issues with compatibility.

Answer by: Customer Support on Dec 15, 2025, 6:39 AM

all three ports on this fitting are the same size and thread, right? Just want to make sure I ain't gotta mix and match anything before I order.

Question by: Kurt P on Jun 28, 2025, 4:50 PM

All three ports run S16 with an M24 x 1.5 thread, so you're working with a consistent connection standard across the whole assembly. No mismatched sizes to deal with.

Answer by: Customer Support on Jun 30, 2025, 11:31 AM

got a DIN tube run already, will this tee let me branch off without fighting the alignment?

Question by: Vince R on Jul 21, 2025, 6:43 AM

With the swivel on the female DIN branch port, you can rotate that branch during install to line things up. The two run ports are DIN tube ends, so you keep the inline run straight while clocking the branch where you need it.

Answer by: Customer Support on Jul 23, 2025, 6:15 AM
