Din X F Din Swivel Branch Tee

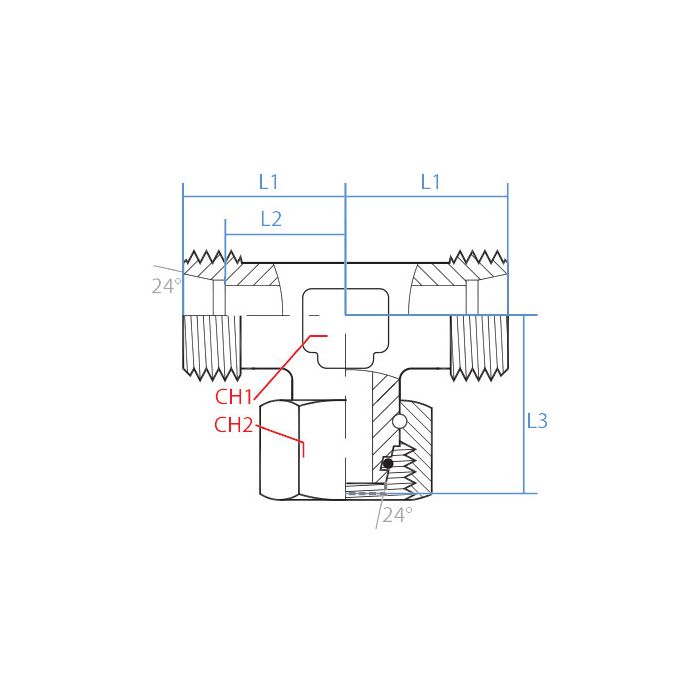

CH1 Width 27mm	CH2 Width 36mm	L1 Length 35mm	L2 Length 27.5mm	L3 Length 38.5mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout M30 X 2.0	Side 1 Gender M	Side 1 Size L22	Side 1 Type Din Tube	Side 2 Callout M30 X 2.0	Side 2 Gender M	Side 2 Size L22	Side 2 Type Din Tube	Side 3 Callout M30 X 2.0	Side 3 Gender F	Side 3 Size L22	Side 3 Type DIN TUBE	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5387L-22	Product Weight 0.77 lbs

Product Questions & Answers 1

Product Questions & Answers

trying to tie three DIN tube lines together, is this tee all L22 with M30 x 2.0 threads on every port?

Question by: Shane H on Aug 25, 2025, 2:16 PM

All three ports are DIN tube size L22 and each one uses an M30 x 2.0 thread. The two side ports are male DIN tube connections, and the branch port is a female DIN tube connection.

Answer by: Customer Support on Aug 27, 2025, 6:20 AM
