Din X F Din Swivel Branch Tee

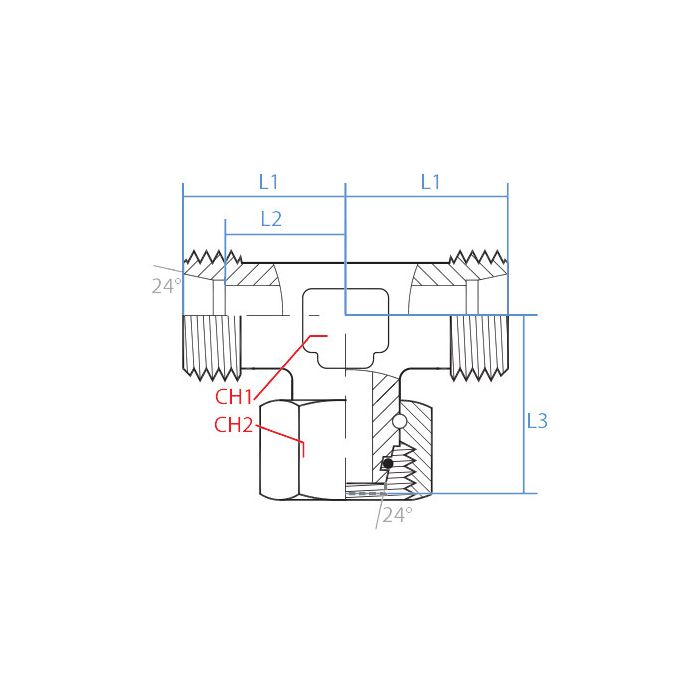

CH1 Width 24mm	CH2 Width 32mm	L1 Length 31mm	L2 Length 23.5mm	L3 Length 35.5mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout M26 X 1.5	Side 1 Gender M	Side 1 Size L18	Side 1 Type Din Tube	Side 2 Callout M26 X 1.5	Side 2 Gender M	Side 2 Size L18	Side 2 Type Din Tube	Side 3 Callout M26 X 1.5	Side 3 Gender F	Side 3 Size L18	Side 3 Type DIN TUBE	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5387L-18	Product Weight 0.62 lbs

Product Questions & Answers 1

Product Questions & Answers

got a branch tee situation on a hydraulic line and need something with M26 x 1.5 threads on all three ports, this the right part?

Question by: Kent G on Jan 30, 2026, 1:34 PM

All three sides on this fitting do run M26 x 1.5 threads, so that part checks out. Two of the ports are male DIN tube connections and the third is female DIN tube, which is what gives you the swivel branch capability. All three are sized at L18, so you're working with consistent sizing across the tee. Steel construction throughout.

Answer by: Customer Support on Feb 1, 2026, 8:10 AM
