Din X F Din Swivel Branch Tee 5387L-15

Specifications

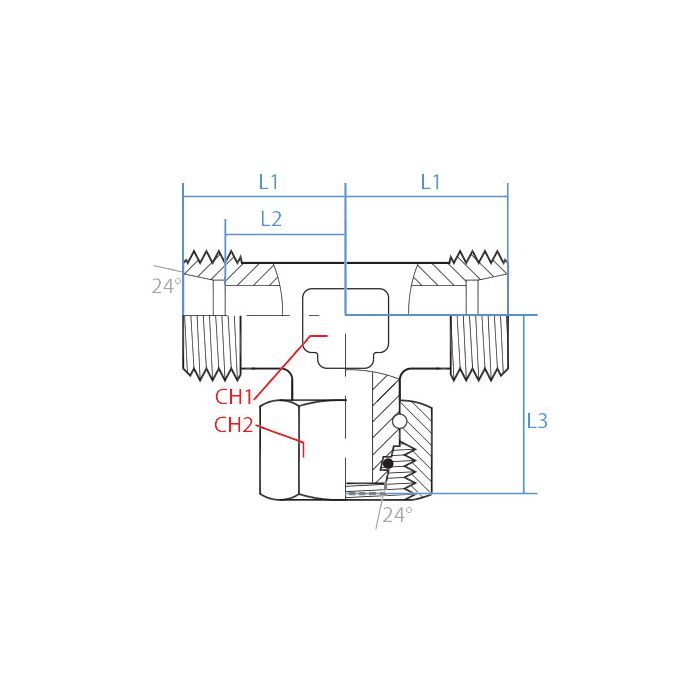

CH1 Width 19mm	CH2 Width 27mm	L1 Length 28mm	L2 Length 21mm	L3 Length 32.5mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout M22 X 1.5	Side 1 Gender M	Side 1 Size L15	Side 1 Type Din Tube	Side 2 Callout M22 X 1.5	Side 2 Gender M	Side 2 Size L15	Side 2 Type Din Tube	Side 3 Callout M22 X 1.5	Side 3 Gender F	Side 3 Size L15	Side 3 Type DIN TUBE	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5387L-15	Product Weight 0.42 lbs

Product Questions & Answers 3

Product Questions & Answers

What size wrench do I need for these fittings?

Question by: Denise G on Aug 17, 2025, 8:12 AM

Adaptall designed this tee with a 19mm wrench flat on one side (Ch1) and a 27mm wrench flat on the other (Ch2). Make sure you have both on hand when you're putting it together.

Answer by: Customer Support on Aug 18, 2025, 3:30 PM

got two L15 DIN tube lines with M22 x 1.5 male ends, does this tee have the same on both straight-through sides?

Question by: Darryl J on Aug 20, 2025, 4:49 PM

Both Side 1 and Side 2 are DIN tube connections with M22 x 1.5 male ends in size L15, so the straight run matches what you described.

Answer by: Customer Support on Aug 22, 2025, 4:36 PM

All three ports on this thing are M22 x 1.5, that right? Just want to make sure before I go ordering it for a DIN tube setup we got running.

Question by: Ray R on Sep 22, 2025, 4:41 PM

All three connections are M22 x 1.5, yes. Sides 1 and 2 are male DIN tube ends, both sized L15, and Side 3 is a female DIN tube end, also L15. So if your existing lines are running that thread and tube size throughout, this tee should drop right into place without needing any additional adapters on the branch.

Answer by: Customer Support on Sep 24, 2025, 12:22 PM
