Din X F Din Swivel Branch Tee 5387L-12

Specifications

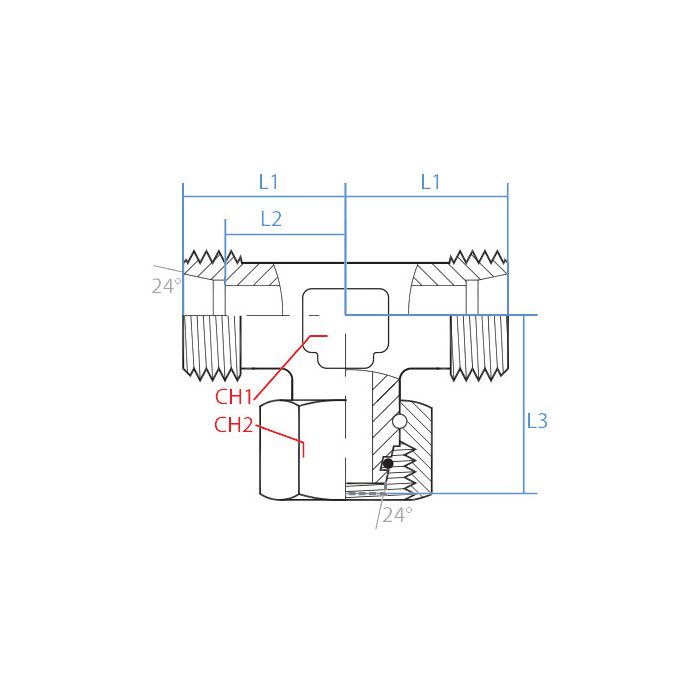

CH1 Width 17mm	CH2 Width 22mm	L1 Length 24mm	L2 Length 17mm	L3 Length 29.5mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout M18 X 1.5	Side 1 Gender M	Side 1 Size L12	Side 1 Type Din Tube	Side 2 Callout M18 X 1.5	Side 2 Gender M	Side 2 Size L12	Side 2 Type Din Tube	Side 3 Callout M18 X 1.5	Side 3 Gender F	Side 3 Size L12	Side 3 Type DIN TUBE	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5387L-12	Product Weight 0.24 lbs

Product Questions & Answers 3

Product Questions & Answers

Wondering if this tee fitting will work with my existing M18 x 1.5 DIN tube setup? Just want to make sure it's gonna be a smooth swap.

Question by: Merle P on Sep 14, 2025, 4:00 PM

This tee is designed for seamless integration with hydraulic systems using M18 x 1.5 DIN tube connections, so it should be a direct fit for your existing setup.

Answer by: Customer Support on Sep 16, 2025, 1:27 PM

got a tight spot on a hydraulic manifold, how big is this tee fitting end to end?

Question by: Phil H on Oct 23, 2025, 8:30 AM

For overall length, the published lengths are L1 24 mm, L2 17 mm, and L3 29.5 mm. Wrench flats are listed as Ch1 17 mm and Ch2 22 mm, which helps when you are checking tool clearance in a cramped area.

Answer by: Customer Support on Oct 24, 2025, 7:34 PM

All three sides on this fitting are M18 x 1.5 DIN tube connections, but which ones are male and which is female?

Question by: Dustin M on Oct 12, 2025, 6:11 AM

Two of the three sides are male DIN tube connections and one is female. The female end is on Side 3, while Sides 1 and 2 are both male. That's what makes it a swivel branch tee rather than a straight tee, so you've got two male ends going out and one female end accepting the branch connection.

Answer by: Customer Support on Oct 14, 2025, 6:25 AM
