Din X F Din Swivel Branch Tee 5387L-10

Specifications

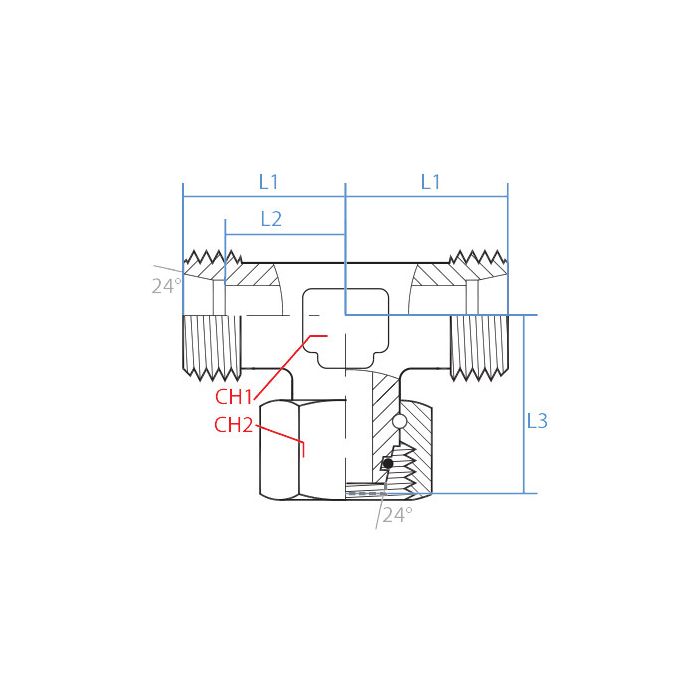

CH1 Width 14mm	CH2 Width 19mm	L1 Length 22mm	L2 Length 15mm	L3 Length 29mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout M16 X 1.5	Side 1 Gender M	Side 1 Size L10	Side 1 Type Din Tube	Side 2 Callout M16 X 1.5	Side 2 Gender M	Side 2 Size L10	Side 2 Type Din Tube	Side 3 Callout M16 X 1.5	Side 3 Gender F	Side 3 Size L10	Side 3 Type DIN TUBE	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5387L-10	Product Weight 0.22 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this tee work okay for connecting a pressure gauge to a hydraulic line?

Question by: Clint G on Dec 21, 2025, 1:37 PM

Designed for hydraulic line assemblies, this branch tee allows for a fixed inline connection while also providing a swiveling branch takeoff, which can be useful for gauge placement and adjustment.

Answer by: Customer Support on Dec 23, 2025, 6:56 AM

Got a line assembly where I need to pull off a branch but the branch connection needs to rotate a little during install, does this fitting handle that?

Question by: Duane C on Jul 25, 2025, 7:37 PM

That swiveling branch port is exactly what makes this fitting useful in that kind of situation. Two male DIN tube ports hold the run fixed, and the female DIN swivel port on the branch side gives you the angular adjustment you need during assembly. All three ports are L10 and threaded M16 x 1.5, so as long as your tubing matches up on that spec, you've got the movement on the branch without fighting the inline connections to get everything lined up.

Answer by: Customer Support on Jul 27, 2025, 1:40 PM
