F Din X M Metric Es Seal

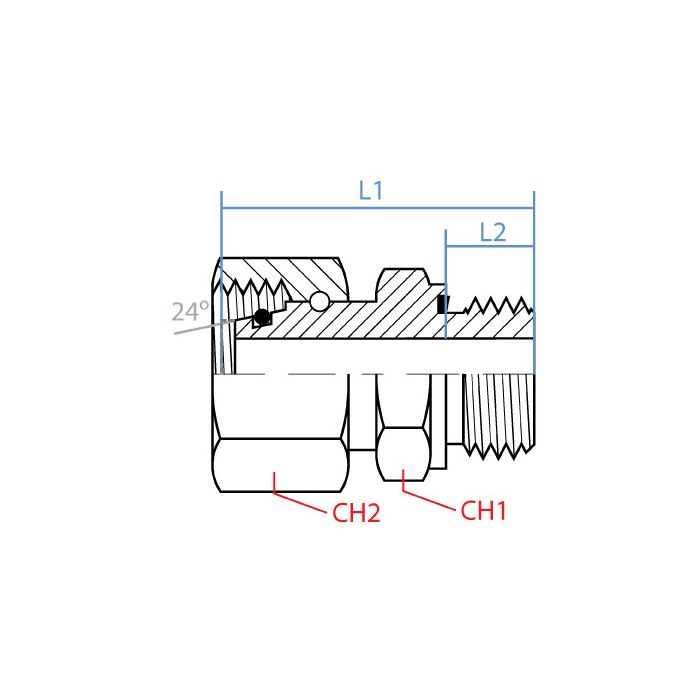

CH1 Width 27mm	CH2 Width 30mm	L1 Length 51mm	L2 Length 14mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M24 X 1.5	Side 1 Gender F	Side 1 Size S16	Side 1 Type Din Tube	Side 2 Callout M22 X 1.5	Side 2 Gender M	Side 2 Size 22mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5368S-16-22	Product Weight 0.40 lbs

Product Questions & Answers 1

Product Questions & Answers

Will this fitting hold up okay for connecting some hydraulic lines on my tractor? Just need something reliable that won't leak.

Question by: Phil M on Feb 17, 2026, 4:40 PM

This steel adapter is designed to provide leak-free connections under pressure, making it a suitable choice for hydraulic line assemblies where durability is a priority. The ES (face seal) configuration on the metric side helps ensure a tight seal.

Answer by: Customer Support on Feb 19, 2026, 2:04 PM
