F Din X M Metric Es Seal

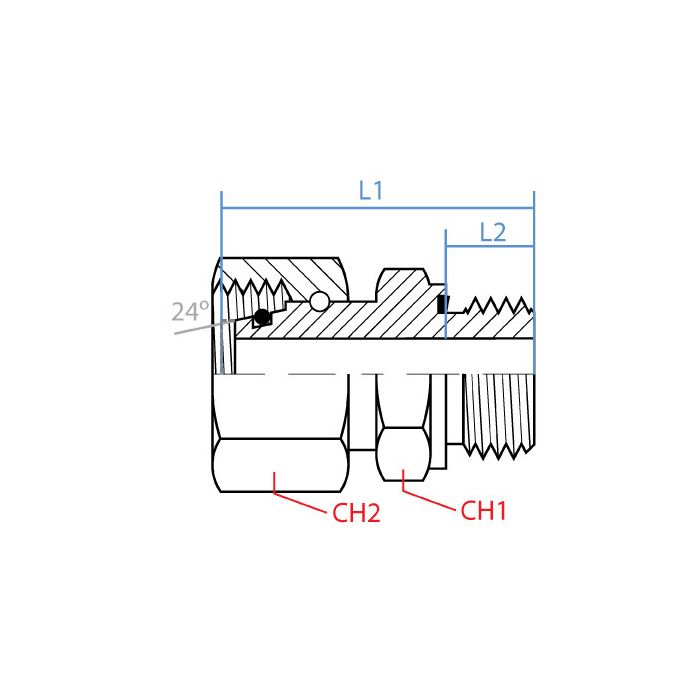

CH1 Width 19mm	CH2 Width 19mm	L1 Length 41.5mm	L2 Length 12mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M16 X 1.5	Side 1 Gender F	Side 1 Size S08	Side 1 Type Din Tube	Side 2 Callout M14 X 1.5	Side 2 Gender M	Side 2 Size 14mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5368S-08-14	Product Weight 0.15 lbs

Product Questions & Answers 2

Product Questions & Answers

What's the overall length of this fitting? Just trying to make sure it'll fit in the space I got.

Question by: Travis P on Jun 2, 2025, 7:31 PM

The total length of this Adaptall fitting is 41.5mm.

Answer by: Customer Support on Jun 3, 2025, 9:24 PM

What exactly is this adapter connecting, thread-wise? Got a M14 fitting on one end of my line and not sure if this bridges over to a DIN tube setup right.

Question by: Kirk G on Nov 22, 2025, 11:58 AM

You got it figured out correctly. One end is a female M16 x 1.5 DIN tube connection and the other is a male M14 x 1.5 metric thread. So yeah, it bridges those two thread types in a straight configuration. Both ends have a 19mm wrench width, and the overall length runs 41.5mm, so it's a pretty compact piece for what it does.

Answer by: Customer Support on Nov 24, 2025, 6:04 AM
