F Din X M Metric Es Seal

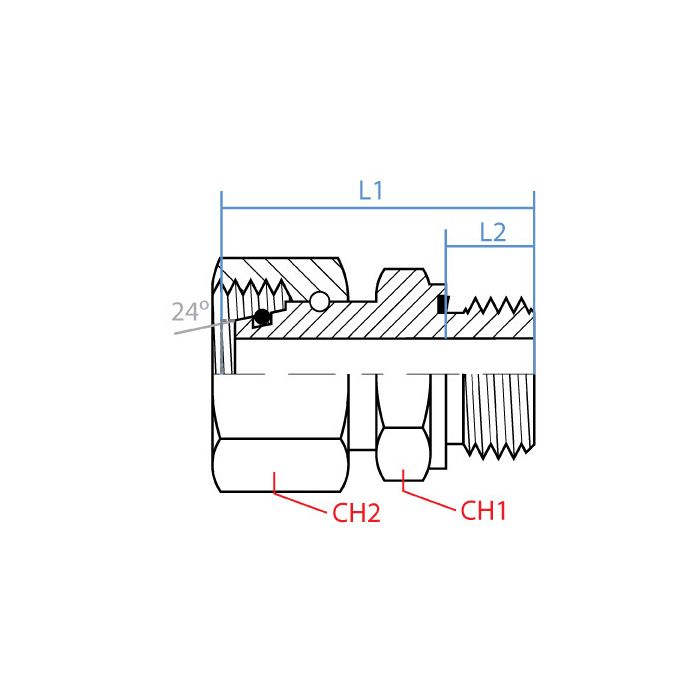

CH1 Width 32mm	CH2 Width 36mm	L1 Length 48.5mm	L2 Length 16mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M30 X 2.0	Side 1 Gender F	Side 1 Size L22	Side 1 Type Din Tube	Side 2 Callout M26 X 1.5	Side 2 Gender M	Side 2 Size 26mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5368L-22-26	Product Weight 0.48 lbs

Product Questions & Answers

What size wrench do I need for installin' this thing?

Question by: Freddie M on Aug 4, 2025, 9:05 AM

You'll need a 32mm wrench for the CH1 side and a 36mm wrench for the CH2 side.

Answer by: Customer Support on Aug 6, 2025, 6:27 AM
