F Din X M Metric Es Seal

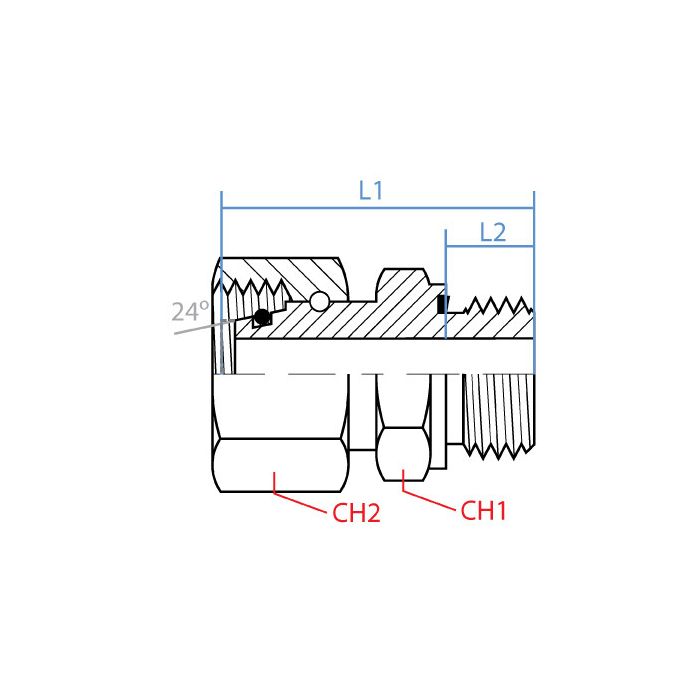

CH1 Width 19mm	CH2 Width 19mm	L1 Length 39.5mm	L2 Length 12mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M16 X 1.5	Side 1 Gender F	Side 1 Size L10	Side 1 Type Din Tube	Side 2 Callout M14 X 1.5	Side 2 Gender M	Side 2 Size 14mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5368L-10-14	Product Weight 1.14 lbs

Product Questions & Answers 1

Product Questions & Answers

fitting connects M16 female DIN tube to M14 male metric -- is that right?

Question by: Duane C on Feb 9, 2026, 10:51 AM

Correct on both counts. Side one is an M16 x 1.5 female DIN tube connection and side two is an M14 x 1.5 male metric fitting. Both wrench flats measure 19mm across, and the total length runs 39.5mm with a 12mm length on the metric end. Steel construction throughout, straight configuration, no bends or offsets.

Answer by: Customer Support on Feb 11, 2026, 8:46 AM
