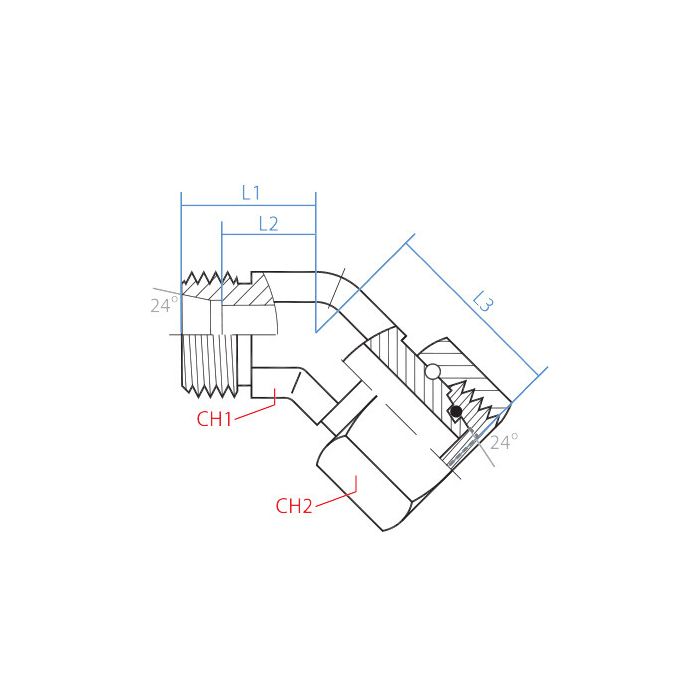

45* Din X F Din Swivel

CH1 Width 33mm	CH2 Width 36mm	L1 Length 26mm	L2 Length 18.5mm	L3 Length 38.5mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout M30 X 2.0	Side 1 Gender M	Side 1 Size L22	Side 1 Type Din Tube	Side 2 Callout M30 X 2.0	Side 2 Gender F	Side 2 Size L22	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5362L-22	Product Weight 0.68 lbs

Product Questions & Answers

trying to replace a 45 degree DIN swivel, do both ends on this one take M30 x 2.0 and fit L22 tube?

Question by: Judy M on Nov 19, 2025, 8:02 AM

It is a 45° elbow swivel with M30 x 2.0 threads on both sides, set up as a male DIN tube end to a female DIN tube end, both sized for L22.

Answer by: Customer Support on Nov 20, 2025, 9:52 PM
