45* Din X F Din Swivel

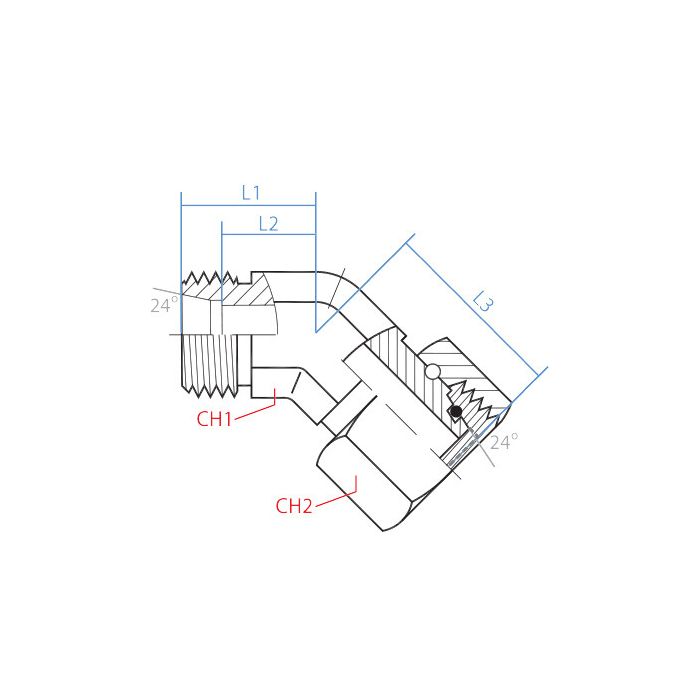

CH1 Width 14mm	CH2 Width 19mm	L1 Length 19mm	L2 Length 12mm	L3 Length 29mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout M16 X 1.5	Side 1 Gender M	Side 1 Size L10	Side 1 Type Din Tube	Side 2 Callout M16 X 1.5	Side 2 Gender F	Side 2 Size L10	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5362L-10	Product Weight 0.13 lbs

Product Questions & Answers 2

Product Questions & Answers

What exactly is the thread setup on this fitting, both sides M16 x 1.5, or are they different?

Question by: Lyle S on May 10, 2025, 12:12 PM

Both sides run M16 x 1.5, but they're not the same end. Side 1 is a male DIN tube connection and Side 2 is female, both at L10 size. The 45-degree angle between them is what makes it useful when you need to redirect a line without putting a straight adapter in a tight spot.

Answer by: Customer Support on May 12, 2025, 9:13 AM

trying to swap out a bent elbow on a DIN tube line. is this one male M16 x 1.5 on one end and a female swivel M16 x 1.5 on the other?

Question by: Cheryl A on Apr 22, 2025, 6:07 PM

It matches a DIN tube connection with an M16 x 1.5 male on Side 1 and an M16 x 1.5 female swivel on Side 2, both in size L10.

Answer by: Customer Support on Apr 24, 2025, 7:11 AM
