45* Din X F Din Swivel 5362L-06

Specifications

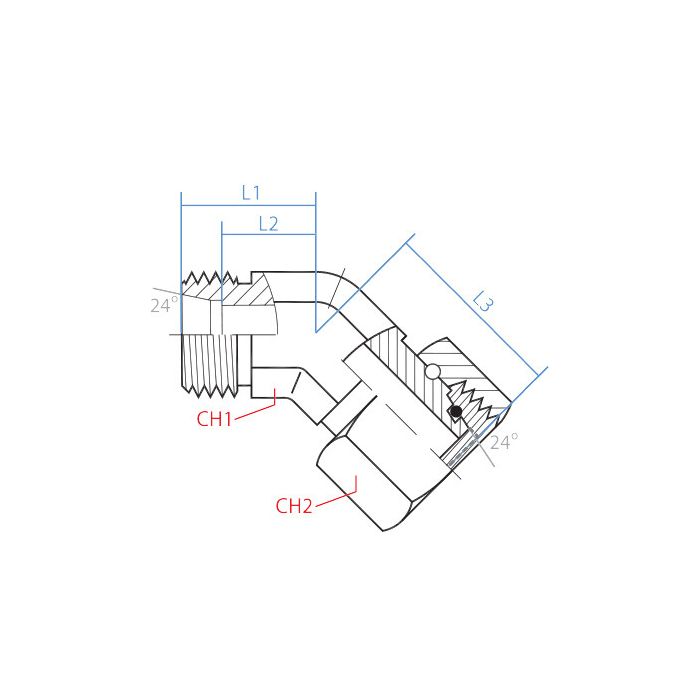

CH1 Width 12mm	CH2 Width 14mm	L1 Length 16mm	L2 Length 9mm	L3 Length 26mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout M12 X 1.5	Side 1 Gender M	Side 1 Size L06	Side 1 Type Din Tube	Side 2 Callout M12 X 1.5	Side 2 Gender F	Side 2 Size L06	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5362L-06	Product Weight 0.09 lbs

Product Questions & Answers 3

Product Questions & Answers

got a tight spot by the valve bank. is this the kind of fitting that helps turn the line without kinking it

Question by: Marvin B on May 5, 2025, 6:03 PM

For tight routing, the 45 degree elbow shape helps you change direction without forcing a sharp bend in the tubing. The swivel style also makes it easier to line things up during assembly so the tube ends can seat cleanly.

Answer by: Customer Support on May 7, 2025, 6:00 AM

Got a tight bend in a steel line running M12 x 1.5 DIN tube fittings, will this swivel work in that kind of spot where a straight fitting just ain't gonna cut it?

Question by: Norm B on Nov 29, 2025, 7:00 PM

A 45 degree elbow is just the right move for exactly that situation. The M12 x 1.5 thread on both ends matches up with DIN tube connections on each side, male on one end and female on the other, so it threads right into an existing DIN tube run without needing adapters in between. The overall length runs 26mm at L3 and 16mm at L1, so it sits pretty compact. Tight routing situations are where this style of fitting earns its keep.

Answer by: Customer Support on Dec 1, 2025, 6:54 AM

What kind of pressures can this thing handle? Don't see it listed.

Question by: Dustin B on Dec 10, 2025, 9:59 AM

This swivel is made from steel for durability, but pressure ratings aren't specified in the provided information.

Answer by: Customer Support on Dec 12, 2025, 6:57 AM
