90* Din X Fdin Swivel Complete

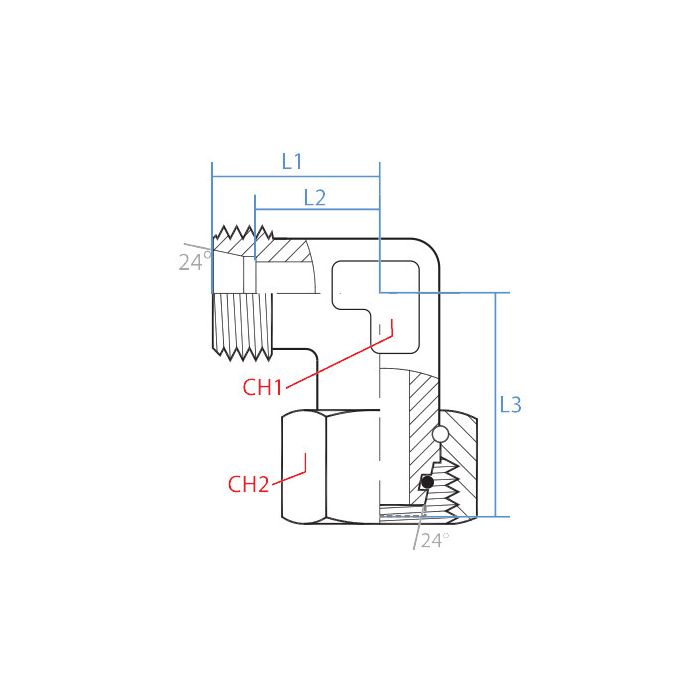

CH1 Width 41mm	CH2 Width 50mm	L1 Length 49mm	L2 Length 35.5mm	L3 Length 55mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M42 X 2.0	Side 1 Gender M	Side 1 Size S30	Side 1 Type Din Tube	Side 2 Callout M42 X 2.0	Side 2 Gender F	Side 2 Size S30	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5360S-30C	Product Weight 1.80 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this fitting hold up okay if I'm running hydraulic fluid through it pretty much all day long?

Question by: Gary W on Feb 23, 2026, 8:45 PM

This fitting is constructed of steel for durability, so it should be suitable for continuous use with hydraulic fluid.

Answer by: Customer Support on Feb 25, 2026, 6:43 AM

both sides are M42 x 2.0 DIN tube connections, does that mean this fitting is meant to join two DIN tube lines at a right angle, or is there some other purpose to having the swivel on the female end?

Question by: Lee T on May 2, 2025, 9:02 PM

Right angle routing between two DIN tube connections is exactly what this fitting handles. The swivel on the female side lets you get the fitting into position and then rotate it to align with your tube before you lock everything down. That's handy when you're working in a tight spot and can't easily spin the whole assembly to get things lined up.

Answer by: Customer Support on May 4, 2025, 3:57 PM
