90* Din X Fdin Swivel Complete

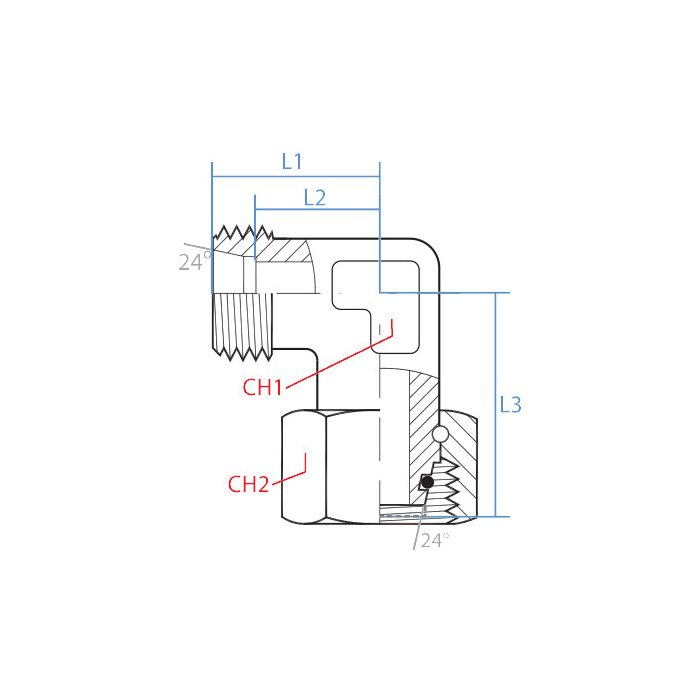

CH1 Width 37mm	CH2 Width 46mm	L1 Length 42mm	L2 Length 30mm	L3 Length 50mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M36 X 2.0	Side 1 Gender M	Side 1 Size S25	Side 1 Type Din Tube	Side 2 Callout M36 X 2.0	Side 2 Gender F	Side 2 Size S25	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-08734068, Alternate Part Number MINO-03671X96025	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5360S-25C	Product Weight 1.43 lbs

Product Questions & Answers 1

Product Questions & Answers

both sides on this fitting are M36 X 2.0 DIN tube, so it's connecting same-size lines at a 90, right?

Question by: Kent J on Nov 12, 2025, 10:29 AM

Correct on both counts. The male side and the female DIN tube connection share the same M36 X 2.0 thread spec, and the fitting turns the line at a 90 degree angle. That makes it a straight-size elbow, not a reducer, so whatever you're connecting on each end needs to match that M36 X 2.0 DIN tube standard.

Answer by: Customer Support on Nov 14, 2025, 6:28 AM
