90* Din X F Din Swivel

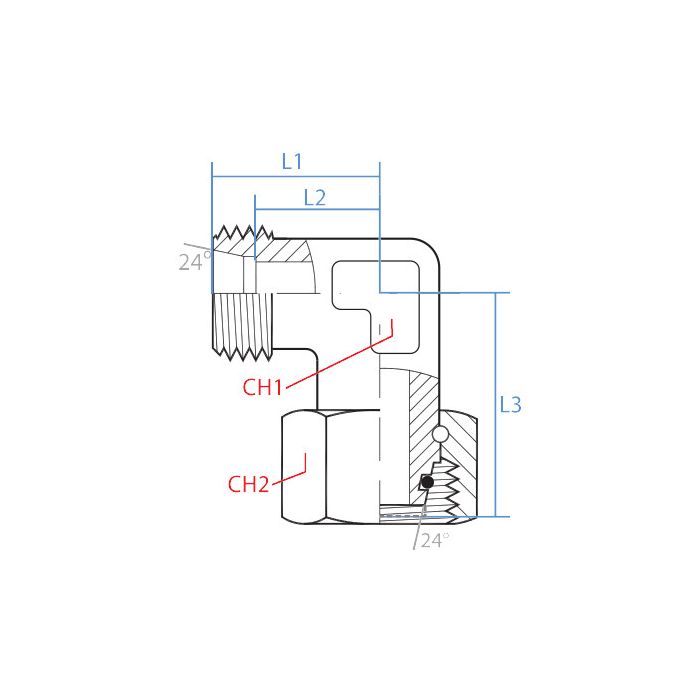

CH1 Width 37mm	CH2 Width 46mm	L1 Length 42mm	L2 Length 30mm	L3 Length 50mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M36 X 2.0	Side 1 Gender M	Side 1 Size S25	Side 1 Type Din Tube	Side 2 Callout M36 X 2.0	Side 2 Gender F	Side 2 Size S25	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5360S-25	Product Weight 1.43 lbs

Product Questions & Answers 2

Product Questions & Answers

What's the deal with the width on this thing? Gotta make sure it fits in my setup, y'know.

Question by: Billy B on Oct 11, 2025, 10:56 AM

Adaptall's spec lists Ch1 width at 37mm and Ch2 width at 46mm, so you can check those against your available space.

Answer by: Customer Support on Oct 13, 2025, 6:03 AM

both sides on this fitting are M36 x 2.0 DIN, so does the swivel actually rotate or is it fixed once you tighten it down?

Question by: Ray H on Nov 17, 2025, 8:02 PM

The swivel function is what sets this apart from a standard elbow. Even after the connections are made up, the fitting is built to rotate, which lets you adjust orientation without having to loosen or re-torque the joint. That's the whole point of going with a swivel style over a fixed 90 elbow, especially when you're working in a tight spot and need to clock the hose or tube line after assembly.

Answer by: Customer Support on Nov 19, 2025, 9:37 AM
