90* Din X Fdin Swivel Complete

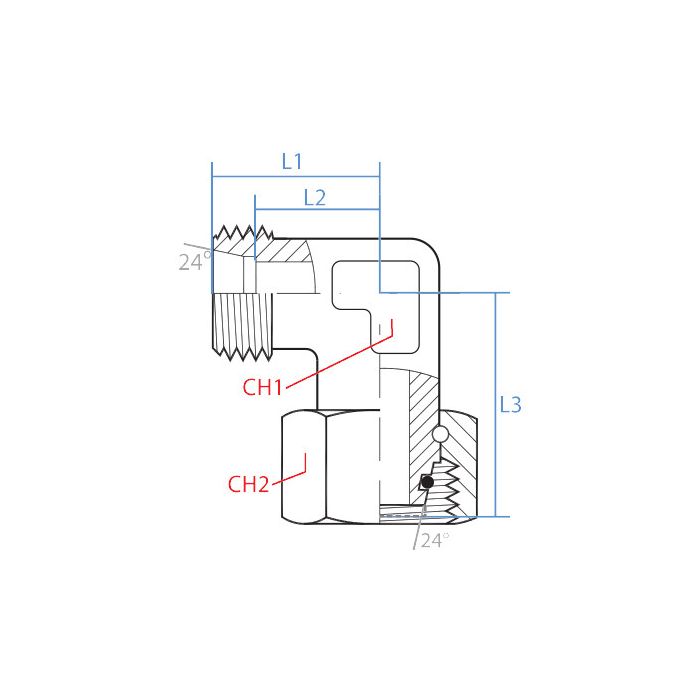

CH1 Width 24mm	CH2 Width 30mm	L1 Length 33mm	L2 Length 24.5mm	L3 Length 36.5mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M24 X 1.5	Side 1 Gender M	Side 1 Size S16	Side 1 Type Din Tube	Side 2 Callout M24 X 1.5	Side 2 Gender F	Side 2 Size S16	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5360S-16C	Product Weight 0.55 lbs

Product Questions & Answers 1

Product Questions & Answers

got a hose end that’s M24 x 1.5 on an S16 DIN tube, will this 90 elbow match up or am i off a size

Question by: Harvey M on Sep 30, 2025, 11:30 AM

Fit comes down to the callouts, and this one is M24 x 1.5 on both sides with an S16 DIN tube configuration. Side 1 is male and side 2 is female, so it is meant to join an M24 x 1.5 male to an M24 x 1.5 female at a 90 degree angle.

Answer by: Customer Support on Oct 1, 2025, 2:41 PM
