90* Din X F Din Swivel

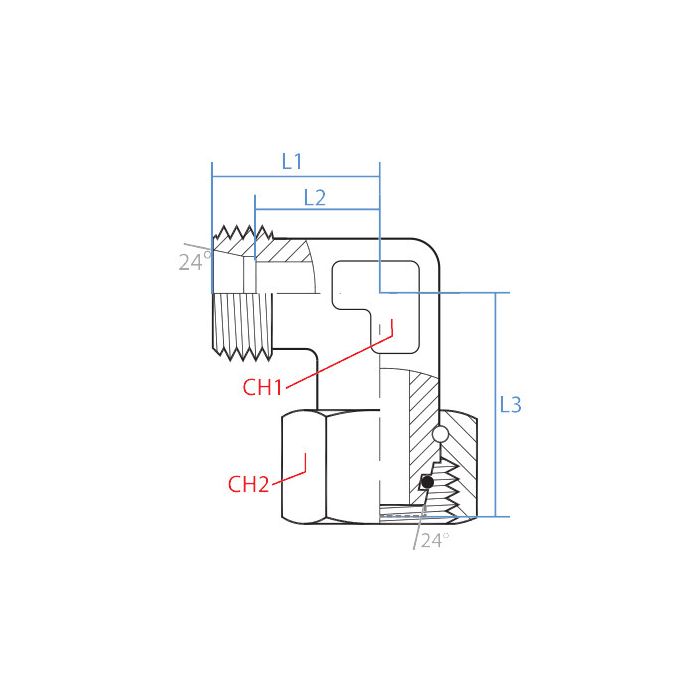

CH1 Width 19mm	CH2 Width 27mm	L1 Length 30mm	L2 Length 22mm	L3 Length 35mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M22 X 1.5	Side 1 Gender M	Side 1 Size S14	Side 1 Type Din Tube	Side 2 Callout M22 X 1.5	Side 2 Gender F	Side 2 Size S14	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5360S-14	Product Weight 0.37 lbs

Product Questions & Answers 2

Product Questions & Answers

both sides on this fitting are M22 x 1.5 thread -- so it'll connect two DIN tube lines of the same size together at a 90 degree angle, right?

Question by: Marvin C on Apr 22, 2025, 4:55 PM

Correct on all counts. Both sides are M22 x 1.5, both are S14 DIN tube connections, and the 90 degree elbow shape lets you route one line perpendicular to the other. The swivel feature on the female side means you can adjust the orientation during installation without fighting the fitting to get it lined up, which saves a fair amount of hassle in tight spots.

Answer by: Customer Support on Apr 23, 2025, 8:40 PM

Will this swivel fitting work with standard DIN fittings I already have?

Question by: Cheryl J on Nov 20, 2025, 6:09 PM

This 90-degree elbow is designed to connect two DIN tube fittings, specifically those with an M22 x 1.5 callout.

Answer by: Customer Support on Nov 22, 2025, 6:59 AM
