90* Din X Fdin Swivel Complete

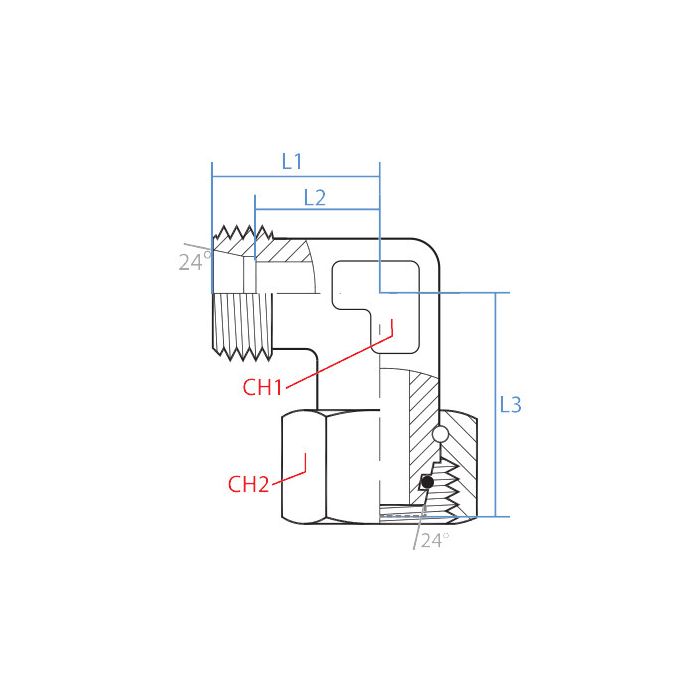

CH1 Width 17mm	CH2 Width 24mm	L1 Length 29mm	L2 Length 21.5mm	L3 Length 31mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M20 X 1.5	Side 1 Gender M	Side 1 Size S12	Side 1 Type Din Tube	Side 2 Callout M20 X 1.5	Side 2 Gender F	Side 2 Size S12	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-08734063, Alternate Part Number MINO-03671X96024	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5360S-12C	Product Weight 0.29 lbs

Product Questions & Answers 2

Product Questions & Answers

both sides are M20 x 1.5 Din Tube, so does that mean this swivel connects two lines using the same fitting standard on each end?

Question by: Ronnie G on Jun 27, 2025, 4:50 PM

Correct on the thread spec. Both sides run M20 x 1.5 Din Tube at S12 sizing, but the key difference is that Side 1 is male and Side 2 is female. That male-to-female setup is what makes it a swivel rather than just a straight coupling. You get rotation at the joint without the lines twisting up on themselves, and the 90-degree elbow shape lets you redirect flow where a straight connector just won't work.

Answer by: Customer Support on Jun 28, 2025, 9:40 PM

What size wrench do I need for this swivel fitting? Looks like I need to tighten it down pretty good.

Question by: Floyd H on Oct 10, 2025, 3:58 PM

You'll need a 17mm wrench for the smaller width (CH1) and a 24mm wrench for the larger width (CH2) of this Adaptall swivel.

Answer by: Customer Support on Oct 12, 2025, 6:15 AM
