90* Din X F Din Swivel

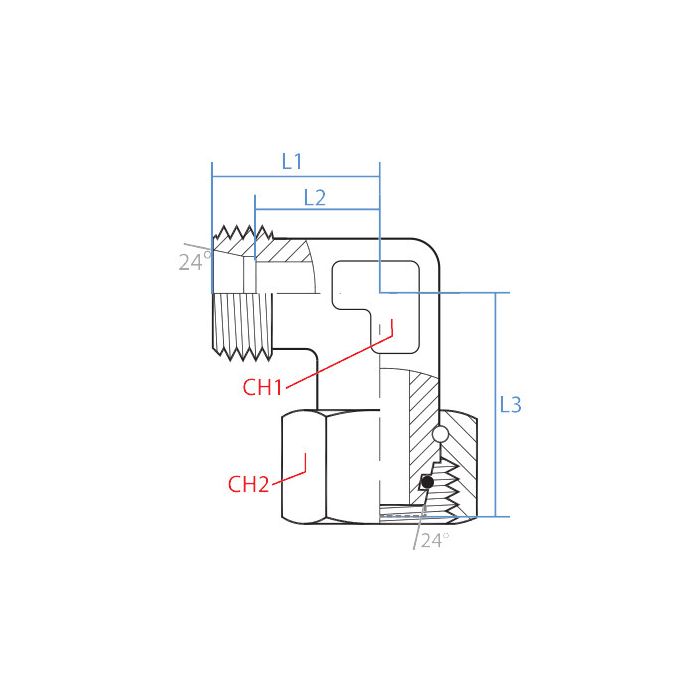

CH1 Width 12mm	CH2 Width 17mm	L1 Length 23mm	L2 Length 16mm	L3 Length 27mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M14 X 1.5	Side 1 Gender M	Side 1 Size S06	Side 1 Type Din Tube	Side 2 Callout M14 X 1.5	Side 2 Gender F	Side 2 Size S06	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5360S-06	Product Weight 0.13 lbs

Product Questions & Answers 2

Product Questions & Answers

both sides on this fitting are M14 x 1.5 thread, does that mean it'll connect two DIN tube ends of the same size together, just at a 90 degree angle?

Question by: Scott G on May 14, 2025, 4:24 PM

Correct on both counts. Side 1 is a male DIN tube connection and Side 2 is a female DIN tube connection, both M14 x 1.5 at S06 sizing. The 90 degree elbow shape lets you route a line around a corner while keeping the same thread spec on each end. The female side swivels, which makes it a lot easier to get the fitting seated without having to spin the whole assembly.

Answer by: Customer Support on May 16, 2025, 11:01 AM

What's the width of the wrench flats on each end of this fitting? Looks like I need two different sizes.

Question by: Wes J on Mar 2, 2026, 10:38 AM

The wrench flat width (Adaptall Ch1 Width) on one side is 12mm, and the other side (Adaptall Ch2 Width) is 17mm.

Answer by: Customer Support on Mar 4, 2026, 8:14 AM
