90* Din X F Din Swivel

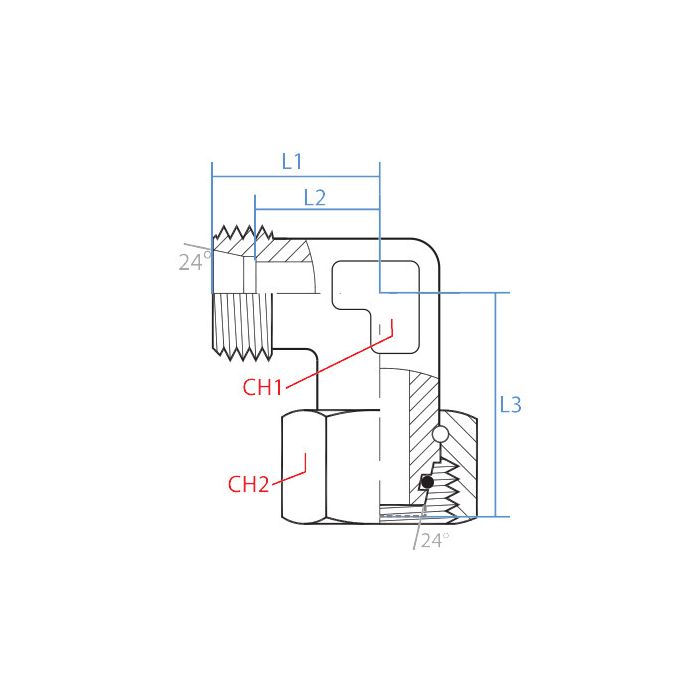

CH1 Width 27mm	CH2 Width 36mm	L1 Length 35mm	L2 Length 27.5mm	L3 Length 38.5mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M30 X 2.0	Side 1 Gender M	Side 1 Size L22	Side 1 Type Din Tube	Side 2 Callout M30 X 2.0	Side 2 Gender F	Side 2 Size L22	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5360L-22	Product Weight 0.66 lbs

Product Questions & Answers 1

Product Questions & Answers

Wondering if this will work to make a 90 degree turn in my hydraulic lines? I'm using DIN fittings.

Question by: Vince G on Aug 9, 2025, 11:01 AM

This 90-degree elbow adapter is indeed designed to create a right-angle transition specifically between DIN tube connections. The male end features a 27mm wrench flat, and the female end needs a 36mm wrench flat for installation.

Answer by: Customer Support on Aug 11, 2025, 6:22 AM
