90* Din X F Din Swivel

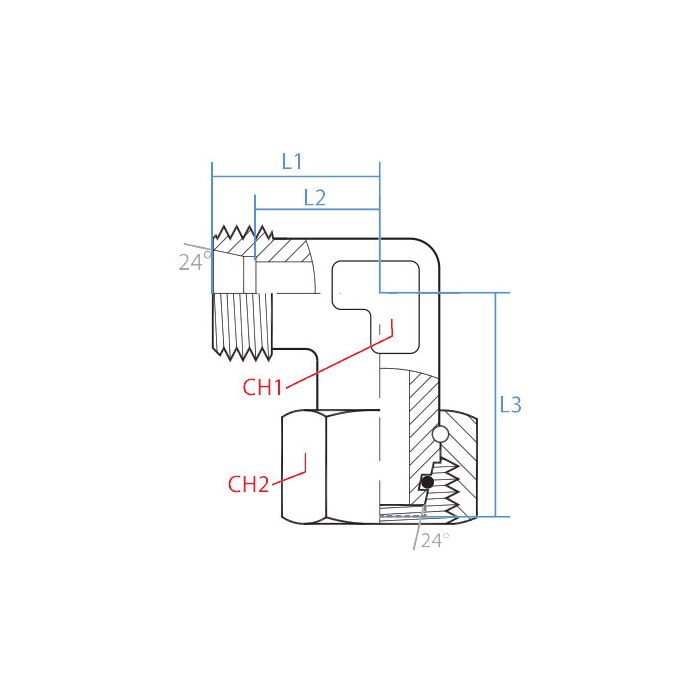

CH1 Width 24mm	CH2 Width 32mm	L1 Length 31mm	L2 Length 23.5mm	L3 Length 35.5mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M26 X 1.5	Side 1 Gender M	Side 1 Size L18	Side 1 Type Din Tube	Side 2 Callout M26 X 1.5	Side 2 Gender F	Side 2 Size L18	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5360L-18	Product Weight 0.53 lbs

Product Questions & Answers 2

Product Questions & Answers

both sides on this fitting are M26 x 1.5 thread, does that mean it connects two lines with the same size DIN tube ends?

Question by: Lee C on Jul 10, 2025, 5:28 PM

Correct. Both sides carry an M26 x 1.5 callout, one male DIN and one female DIN, both at the L18 size. So you're looking at a same-size connection on each end, just oriented at 90 degrees to each other. That elbow configuration is real handy when you need to redirect a hydraulic line and can't swing a straight adapter into position.

Answer by: Customer Support on Jul 12, 2025, 6:48 AM

Will this fitting work with standard DIN tubing?

Question by: Gary E on May 11, 2025, 9:47 PM

This 90-degree swivel is designed to connect two DIN tubes, as it has a male DIN tube end and a female DIN tube end, both with M26 X 1.5 callouts.

Answer by: Customer Support on May 13, 2025, 7:09 AM
