90* Din X F Din Swivel

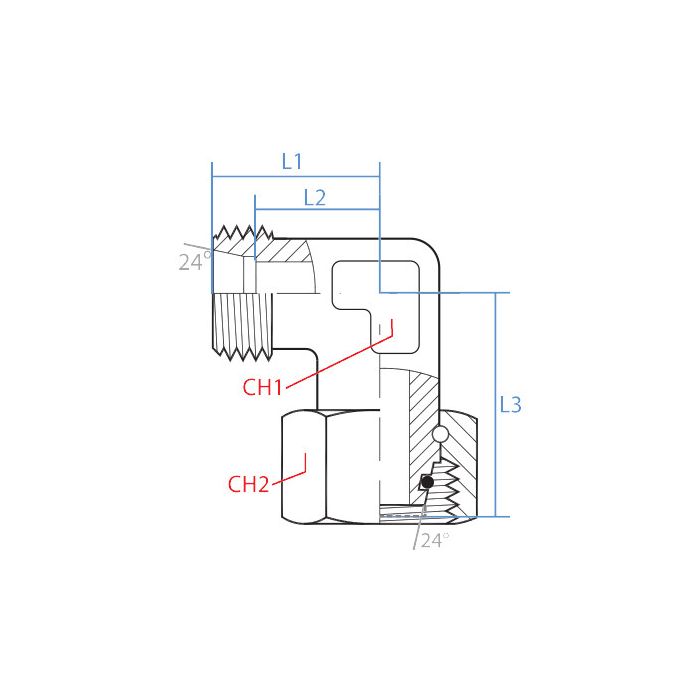

CH1 Width 19mm	CH2 Width 27mm	L1 Length 28mm	L2 Length 21mm	L3 Length 32.5mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M22 X 1.5	Side 1 Gender M	Side 1 Size L15	Side 1 Type Din Tube	Side 2 Callout M22 X 1.5	Side 2 Gender F	Side 2 Size L15	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5360L-15	Product Weight 0.33 lbs

Product Questions & Answers 1

Product Questions & Answers

both sides on this thing are M22 x 1.5 thread, so does that mean it connects two fittings with the same size DIN tube ends?

Question by: Floyd P on Sep 18, 2025, 9:16 AM

Correct on the threading. Both ends carry an M22 x 1.5 thread in the L15 size, so you're working with matched DIN tube connections on each side. One end is male and the other is female, which is what makes it useful for joining or extending a run where you need that 90 degree turn without mismatching thread sizes.

Answer by: Customer Support on Sep 19, 2025, 1:14 PM
