90* Din X Fdin Swivel Complete

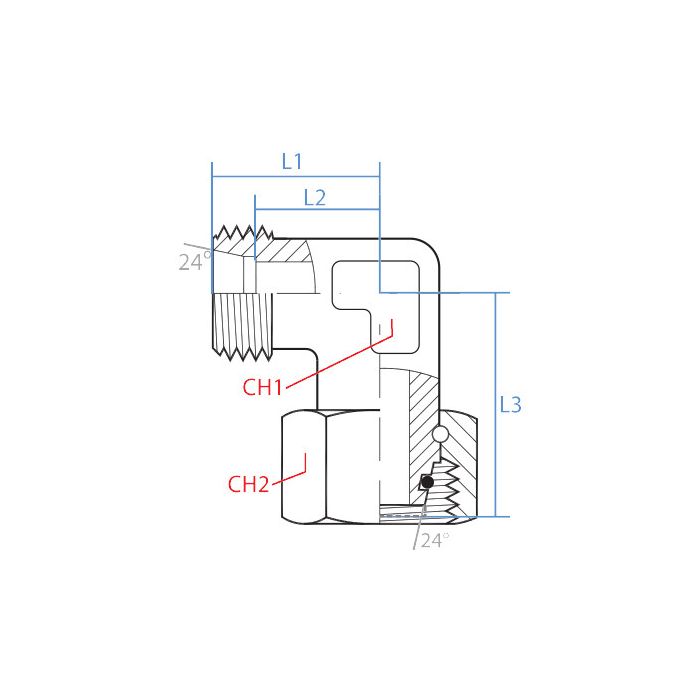

CH1 Width 17mm	CH2 Width 22mm	L1 Length 24mm	L2 Length 17mm	L3 Length 29.5mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M18 X 1.5	Side 1 Gender M	Side 1 Size L12	Side 1 Type Din Tube	Side 2 Callout M18 X 1.5	Side 2 Gender F	Side 2 Size L12	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-08734044, Alternate Part Number MINO-03671X96021	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5360L-12C	Product Weight 0.20 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this swivel elbow work with standard metric fittings?

Question by: Chad W on Nov 9, 2025, 3:39 PM

The 90 Din X Fdin Swivel Complete is made to fit M18 X 1.5 male to M18 X 1.5 female connections. That makes it compatible with DIN tube connections of that size.

Answer by: Customer Support on Nov 11, 2025, 9:04 AM

both sides on this fitting are M18 x 1.5, so is it meant to connect two lines with the same thread size at a 90 degree angle?

Question by: Howard G on Jan 20, 2026, 5:30 PM

That's what it does. The male side threads into a port or component with an M18 x 1.5 female fitting, and the swivel female end accepts an M18 x 1.5 male fitting on the other side. The 90 degree elbow lets you redirect the line without bending hose or pipe, which comes in real handy when you're working in a tight spot and need to make a clean turn.

Answer by: Customer Support on Jan 22, 2026, 4:19 PM
