90* Din X Fdin Swivel Complete

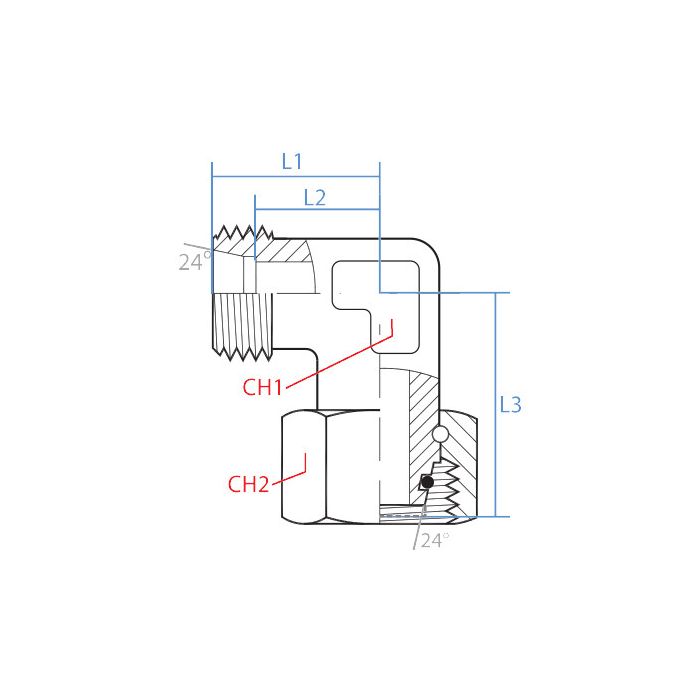

CH1 Width 12mm	CH2 Width 14mm	L1 Length 19mm	L2 Length 12mm	L3 Length 26mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M12 X 1.5	Side 1 Gender M	Side 1 Size L06	Side 1 Type Din Tube	Side 2 Callout M12 X 1.5	Side 2 Gender F	Side 2 Size L06	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-08734041, Alternate Part Number MINO-03671X96018	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5360L-06C	Product Weight 0.09 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this fitting work with standard metric tubing, or is there something special about the DIN standard?

Question by: Ross C on Mar 1, 2026, 7:35 PM

It's designed for use with DIN standard metric tubing, specifically M12 x 1.5 connections on both ends.

Answer by: Customer Support on Mar 3, 2026, 6:57 AM

both sides are M12 x 1.5 on this thing, so does that mean im connecting two of the same size DIN tube lines together, just at a 90?

Question by: Jean P on Apr 10, 2025, 6:25 PM

That's what's going on here. Side 1 is a male M12 x 1.5 DIN tube fitting and Side 2 is a female M12 x 1.5 DIN tube fitting, so you're working with the same thread spec on both ends. The 90 degree elbow shape lets you change direction between those two connections without needing a separate adapter in between. It's a clean way to route lines when you've got a tight corner and both ports are already DIN metric.

Answer by: Customer Support on Apr 12, 2025, 6:20 AM
