F Din X M Din Reducer 5315S-16-12

Specifications

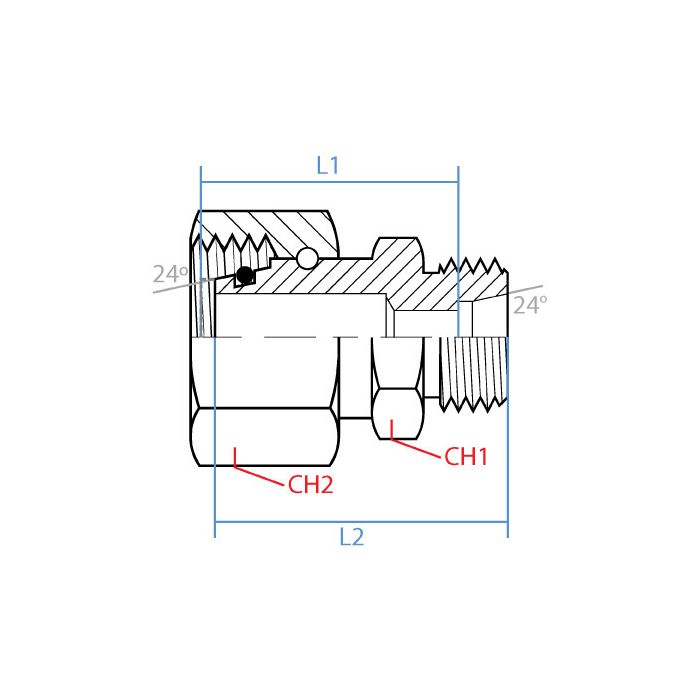

CH1 Width 22mm	CH2 Width 30mm	L1 Length 31.5mm	L2 Length 36.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M24 X 1.5	Side 1 Gender F	Side 1 Size S16	Side 1 Type Din Tube	Side 2 Callout M20 X 1.5	Side 2 Gender M	Side 2 Size S12	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5315S-16-12	Product Weight 0.99 lbs

Product Questions & Answers 3

Product Questions & Answers

got a female DIN tube end that’s M24 x 1.5 (S16). will this reducer step it down to a male M20 x 1.5 (S12) without any funny business

Question by: Howard P on Oct 30, 2025, 9:27 AM

For a straight step-down between DIN tube sizes, that is exactly what this reducer is built to do. Side 1 is a female DIN tube fitting with M24 x 1.5 threads in S16, and side 2 is a male DIN tube fitting with M20 x 1.5 threads in S12.

Answer by: Customer Support on Oct 31, 2025, 2:32 PM

What material is this reducer made of?

Question by: Duane S on Apr 30, 2025, 8:01 PM

This reducer is manufactured from steel, providing a durable connection in hydraulic systems.

Answer by: Customer Support on May 2, 2025, 8:06 AM

got a line running M24 x 1.5 female DIN on one end and need to step down to a M20 x 1.5 male DIN on the other, this the right fitting for that?

Question by: Denise K on May 25, 2025, 5:56 PM

That's what this reducer is built for. The female side picks up the M24 x 1.5 thread at S16 size, and the male end connects out at M20 x 1.5 in S12. Straight body, no angle, so it drops right in line between the two ports without any routing complications.

Answer by: Customer Support on May 27, 2025, 6:56 AM
