F Din X M Din Reducer

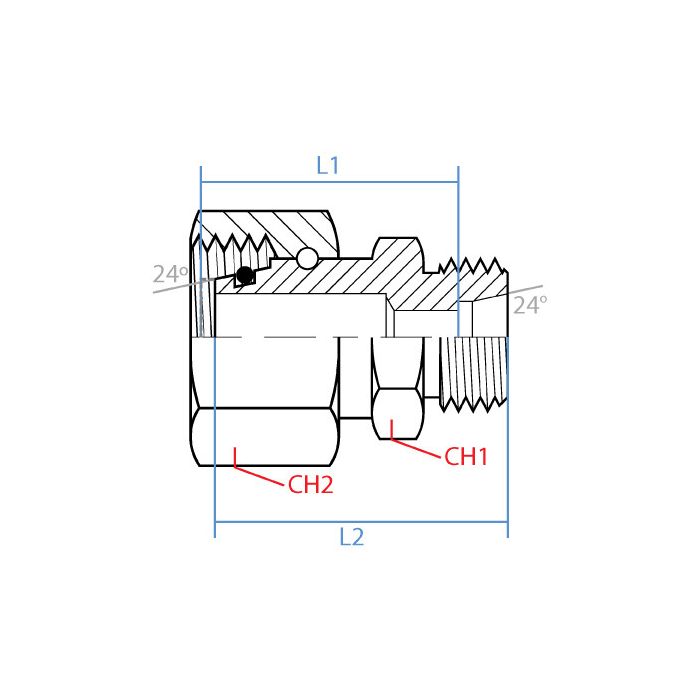

CH1 Width 17mm	CH2 Width 22mm	L1 Length 27.5mm	L2 Length 33mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M18 X 1.5	Side 1 Gender F	Side 1 Size S10	Side 1 Type Din Tube	Side 2 Callout M16 X 1.5	Side 2 Gender M	Side 2 Size S08	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5315S-10-08	Product Weight 0.99 lbs

Product Questions & Answers 1

Product Questions & Answers

trying to step down from an M18 x 1.5 din tube line to M16 x 1.5, is this the right reducer?

Question by: Debbie G on Apr 29, 2025, 1:21 PM

For stepping between those two DIN tube thread sizes, it matches that setup: one side is a female M18 x 1.5 DIN tube connection and the other side is a male M16 x 1.5 DIN tube connection.

Answer by: Customer Support on May 1, 2025, 6:10 AM
