F Din X M Din Reducer Complete

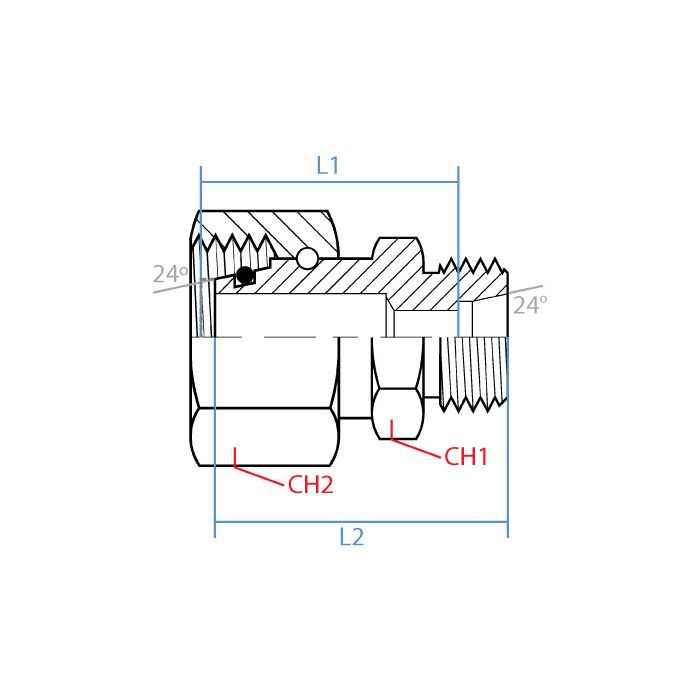

CH1 Width 50mm	CH2 Width 60mm	L1 Length 43mm	L2 Length 50mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M52 X 2.0	Side 1 Gender F	Side 1 Size L42	Side 1 Type Din Tube	Side 2 Callout M45 X 2.0	Side 2 Gender M	Side 2 Size L35	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5315L-42-35C	Product Weight 1.40 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a line running M52 x 2.0 DIN tube and need to step it down to M45 x 2.0 on the other end, this the right fitting for that?

Question by: Kent P on Dec 27, 2025, 5:44 PM

That's what this one does. Female M52 x 2.0 DIN on one side, male M45 x 2.0 DIN on the other, straight through. Steel construction, 43mm on the L1 side and 50mm on the L2 side. Wrench flats are 50mm and 60mm respectively so you got enough to torque it down proper.

Answer by: Customer Support on Dec 28, 2025, 6:37 PM
