F Din X M Din Reducer Complete

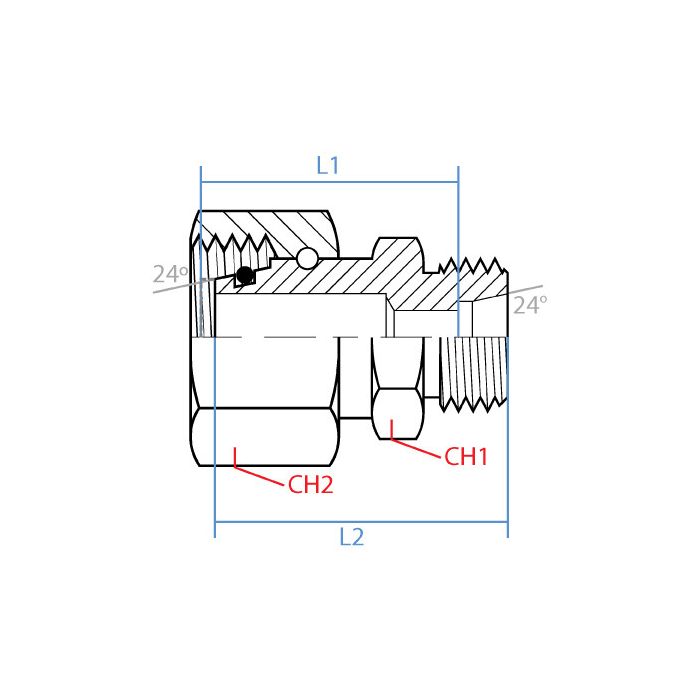

CH1 Width 24mm	CH2 Width 32mm	L1 Length 29mm	L2 Length 34.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M26 X 1.5	Side 1 Gender F	Side 1 Size L18	Side 1 Type Din Tube	Side 2 Callout M18 X 1.5	Side 2 Gender M	Side 2 Size L12	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5315L-18-12C	Product Weight 0.28 lbs

Product Questions & Answers 1

Product Questions & Answers

Got an L18 female DIN side on a line and need to step it down to an L12 male connection. This the right part for that?

Question by: Larry H on Mar 3, 2026, 1:12 PM

That's what this reducer is built for. The female side is M26 x 1.5 at L18 and the male side comes out at M18 x 1.5 for L12, so it bridges those two DIN tube sizes inline without any angled geometry to deal with. Steel construction holds up well in industrial hydraulic setups, and the straight profile keeps things compact where space is tight.

Answer by: Customer Support on Mar 5, 2026, 7:53 AM
