F Din X M Din Reducer

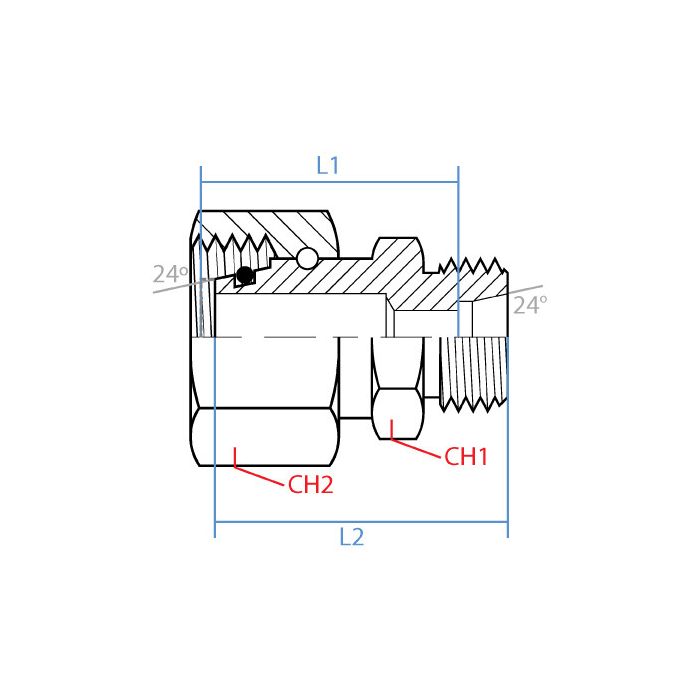

CH1 Width 24mm	CH2 Width 32mm	L1 Length 29mm	L2 Length 34.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M26 X 1.5	Side 1 Gender F	Side 1 Size L18	Side 1 Type Din Tube	Side 2 Callout M18 X 1.5	Side 2 Gender M	Side 2 Size L12	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5315L-18-12	Product Weight 0.99 lbs

Product Questions & Answers 2

Product Questions & Answers

got a DIN tube line with an M26 x 1.5 female end, will this step it down to M18 x 1.5 on the other side?

Question by: Cindy M on Oct 22, 2025, 8:21 AM

For adapting between two DIN tube thread sizes, it goes from a female M26 x 1.5 DIN tube connection on one end to a male M18 x 1.5 DIN tube connection on the other, in a straight reducer body.

Answer by: Customer Support on Oct 23, 2025, 5:31 PM

Will this work to adapt a M18 male to a M26 female?

Question by: Hubert M on Mar 17, 2026, 11:34 AM

That's precisely what this Adaptall reducer does. It adapts from a female M26 x 1.5 DIN tube connection down to a male M18 x 1.5 DIN tube connection.

Answer by: Customer Support on Mar 18, 2026, 12:09 PM
