F Din X M Din Reducer 5315L-10-08

Specifications

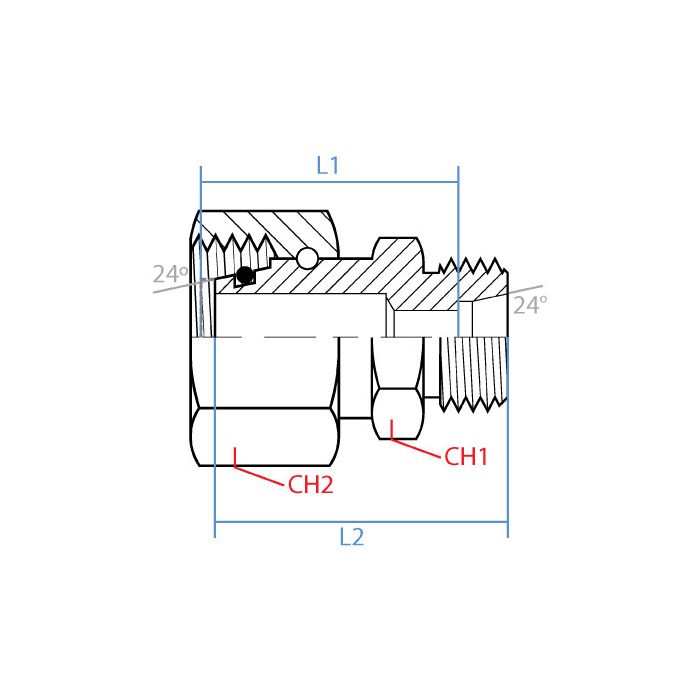

CH1 Width 14mm	CH2 Width 19mm	L1 Length 25mm	L2 Length 31mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M16 X 1.5	Side 1 Gender F	Side 1 Size L10	Side 1 Type Din Tube	Side 2 Callout M14 X 1.5	Side 2 Gender M	Side 2 Size L08	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5315L-10-08	Product Weight 0.99 lbs

Product Questions & Answers 3

Product Questions & Answers

Will this here reducer fit right for connecting a M16 to a M14 DIN tube?

Question by: Gene S on Jul 7, 2025, 1:21 PM

Yes, it is designed to adapt a female M16 X 1.5 DIN Tube connection to a male M14 X 1.5 DIN Tube connection, so it should work for that application.

Answer by: Customer Support on Jul 9, 2025, 6:26 AM

got a female M16 x 1.5 DIN tube port but my line is M14 x 1.5. is this the right reducer for that?

Question by: Neil S on Sep 27, 2025, 6:29 AM

For stepping down between DIN tube sizes, it goes from a female M16 x 1.5 connection on one side to a male M14 x 1.5 connection on the other. Side 1 is L10 (female) and Side 2 is L08 (male), so it matches that M16 to M14 reduction.

Answer by: Customer Support on Sep 29, 2025, 6:00 AM

got an L10 female DIN port on a manifold block and need to step it down to hook up an L08 male fitting, this the right part for that?

Question by: Cindy S on Aug 22, 2025, 7:23 PM

That's what this reducer is built for. Side 1 is a female M16 x 1.5 DIN tube connection at L10, and Side 2 is a male M14 x 1.5 DIN tube connection at L08. Steel construction, straight profile, so it drops right in between those two sizes without any angled offset to deal with.

Answer by: Customer Support on Aug 24, 2025, 9:29 AM
