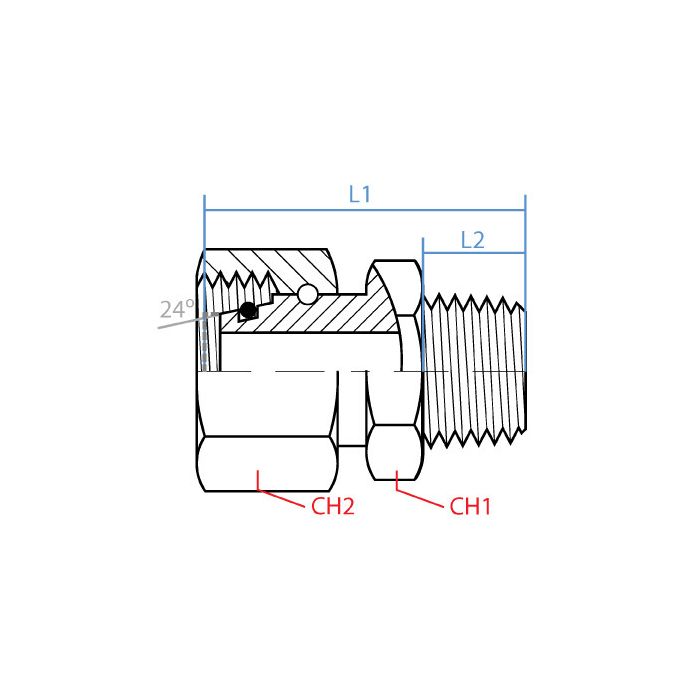

F Din X Male Npt

CH1 Width 19mm	CH2 Width 22mm	L1 Length 44.5mm	L2 Length 15mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M18 X 1.5	Side 1 Gender F	Side 1 Size S10	Side 1 Type Din Tube	Side 2 Callout 3/8 - 18 NPTF	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5307S-10-06	Product Weight 0.16 lbs

Product Questions & Answers 2

Product Questions & Answers

Hey, will this here fitting hold up if I'm usin' it for somethin' like hydraulics on a farm implement? Gotta be tough, y'know.

Question by: Hank P on Dec 22, 2025, 7:01 AM

Constructed from durable steel, this fitting is designed to maintain a firm and stable connection in demanding hydraulic environments, making it suitable for robust applications like farm equipment.

Answer by: Customer Support on Dec 24, 2025, 6:25 AM

got a hydraulic line running M18 x 1.5 DIN tube on one end and need to tie into a 3/8 NPT port on a pump housing, this the right fitting to make that happen?

Question by: Connie W on Aug 25, 2025, 12:21 PM

That's what this one's built for. The female DIN tube end is M18 x 1.5 and the male end is 3/8-18 NPTF, so it bridges those two thread types in a straight shot. Steel construction, 44.5mm overall length, and it comes from Adaptall, so the tolerances are tight. If your line and port match those callouts, this fitting will make that connection clean and solid.

Answer by: Customer Support on Aug 26, 2025, 3:44 PM
