F Din X Male Npt 5307L-22-12

Specifications

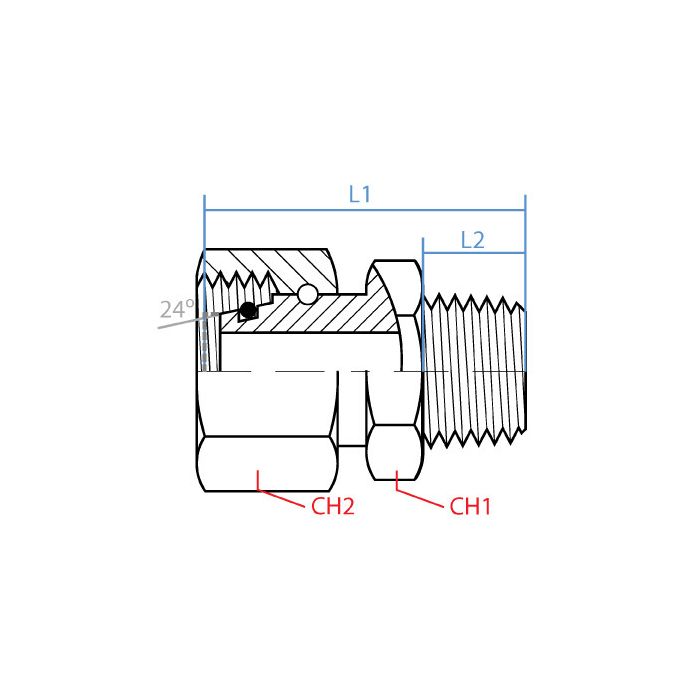

CH1 Width 30mm	CH2 Width 36mm	L1 Length 49mm	L2 Length 20mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M30 X 2.0	Side 1 Gender F	Side 1 Size L22	Side 1 Type Din Tube	Side 2 Callout 3/4 - 14 NPTF	Side 2 Gender M	Side 2 Size 3/4"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5307L-22-12	Product Weight 0.50 lbs

Product Questions & Answers 2

Product Questions & Answers

Got a line running M30 x 2.0 DIN tube on one end and need to tie into a 3/4 inch NPT port on a pump housing, this fitting do that job straight out of the box?

Question by: Rex W on May 10, 2025, 6:06 PM

That's what this one's built for. One end is a female DIN tube connection at M30 x 2.0 and the other is a male 3/4-14 NPTF thread, so it bridges those two standards without any additional adapters in between. The straight profile keeps things clean in tight hydraulic connections runs, and the steel construction holds up in working hydraulic environments. At 49mm total length, it's a compact piece, so just make sure you've got enough clearance around that pump port before you button everything up.

Answer by: Customer Support on May 12, 2025, 5:58 PM

Reckon this'll hold up in a hydraulic system running at high pressure all day long?

Question by: Neil B on Apr 8, 2025, 5:44 PM

Crafted from durable steel, this fitting is designed for high-performance environments needing robust, leak-proof connections. Its construction ensures it can withstand the demands of continuous, high-pressure hydraulic applications.

Answer by: Customer Support on Apr 10, 2025, 10:11 AM
