F Din X Male Npt

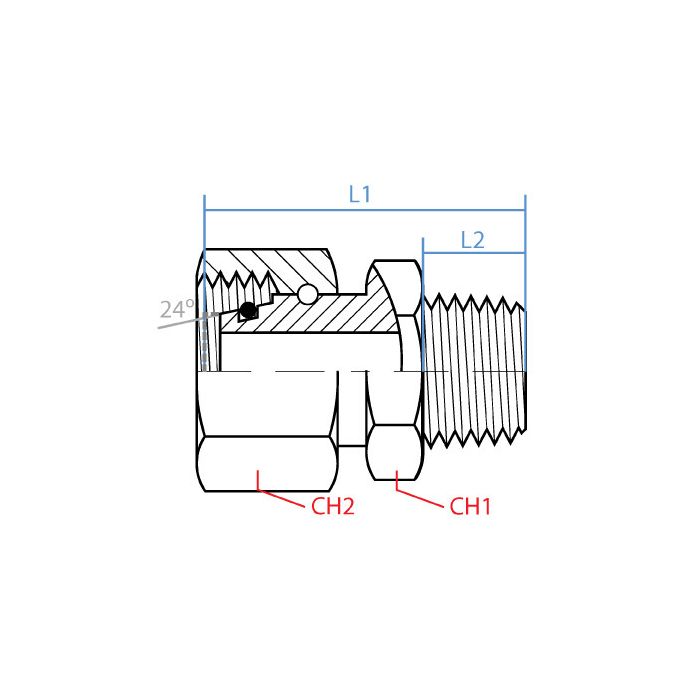

CH1 Width 27mm	CH2 Width 32mm	L1 Length 47.5mm	L2 Length 20mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M26 X 1.5	Side 1 Gender F	Side 1 Size L18	Side 1 Type Din Tube	Side 2 Callout 1/2 - 14 NPTF	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5307L-18-08	Product Weight 0.36 lbs

Product Questions & Answers 2

Product Questions & Answers

got a hose end that’s M26 x 1.5 din, will this adapter get me over to 1/2-14 NPTF on the other side?

Question by: Glen B on Nov 7, 2025, 12:26 PM

You can use it for that exact changeover. Side 1 is a female DIN tube end with an M26 x 1.5 callout (size L18), and Side 2 is a male 1/2 - 14 NPTF thread.

Answer by: Customer Support on Nov 9, 2025, 6:29 AM

Got a hydraulic line running M26 x 1.5 DIN tube and need to tie into a 1/2 inch NPT port, this the right fitting for that?

Question by: Daryl D on Jun 20, 2025, 9:43 PM

That's what this one handles. Side 1 is a female DIN tube end with an M26 x 1.5 thread, and Side 2 is a male 1/2-14 NPTF thread. Steel construction, straight configuration, so it drops right in without any angled offset. The L18 size on the DIN side and 1/2 inch on the NPT side line up with what you described.

Answer by: Customer Support on Jun 22, 2025, 6:07 AM
