F Din X Male Npt

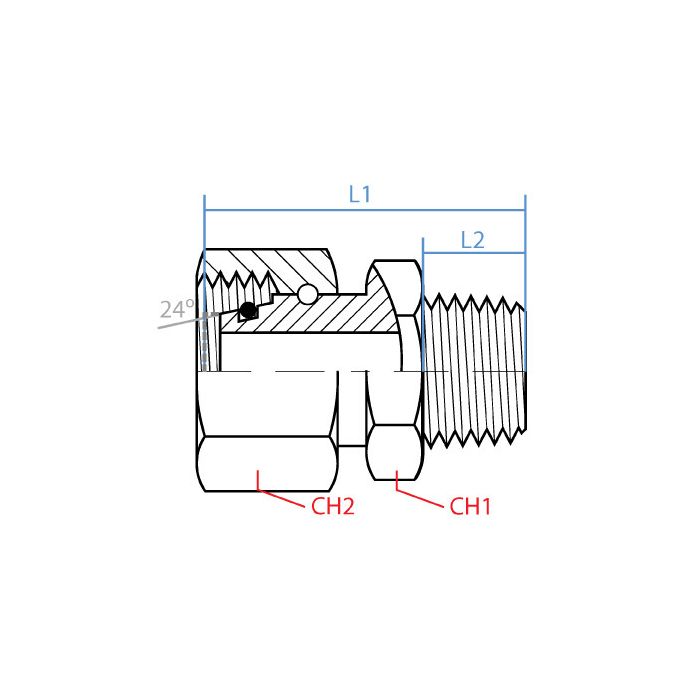

CH1 Width 22mm	CH2 Width 27mm	L1 Length 48mm	L2 Length 20mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M22 X 1.5	Side 1 Gender F	Side 1 Size L15	Side 1 Type Din Tube	Side 2 Callout 1/2 - 14 NPTF	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5307L-15-08	Product Weight 0.26 lbs

Product Questions & Answers 1

Product Questions & Answers

trying to hook a DIN tube fitting into a 1/2 NPT port, is this the right adapter?

Question by: Sheila B on Mar 26, 2026, 8:55 AM

For that kind of changeover, it’s a straight steel adapter that goes from a female DIN tube fitting M22 x 1.5 in L15 size on one end to a male 1/2 - 14 NPTF on the other.

Answer by: Customer Support on Mar 27, 2026, 1:08 PM
