F Din X Male Npt

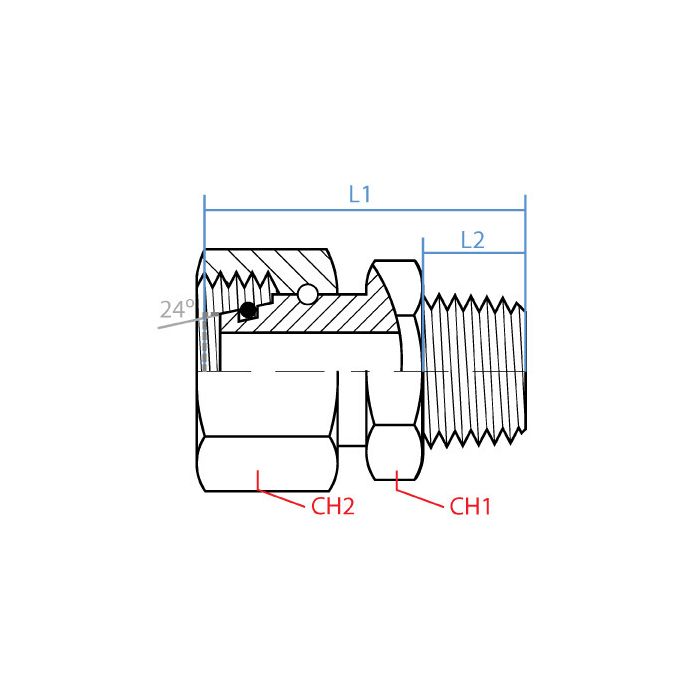

CH1 Width 19mm	CH2 Width 22mm	L1 Length 45.5mm	L2 Length 15mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M18 X 1.5	Side 1 Gender F	Side 1 Size L12	Side 1 Type Din Tube	Side 2 Callout 3/8 - 18 NPTF	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5307L-12-06	Product Weight 0.15 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this fitting work to connect a DIN standard tube to a regular NPT port?

Question by: Gene A on Oct 28, 2025, 8:26 PM

Yes, that's exactly what it's for. This Adaptall fitting has a female DIN tube end and a male NPT end, so you can hook up DIN standard tubes to NPT threaded ports.

Answer by: Customer Support on Oct 30, 2025, 8:50 AM

got a tube nut that’s M18 x 1.5 on the DIN side. is this the right adapter to go from that to a 3/8 npt port?

Question by: Travis M on Jul 31, 2025, 8:55 AM

Side 1 is a female DIN tube end with an M18 x 1.5 thread in L12 size, and side 2 is a 3/8 inch male NPTF thread (3/8 - 18). It’s a straight adapter meant to connect a DIN standard tube end to an NPT threaded port.

Answer by: Customer Support on Aug 1, 2025, 8:32 PM
