F Din X Male Npt

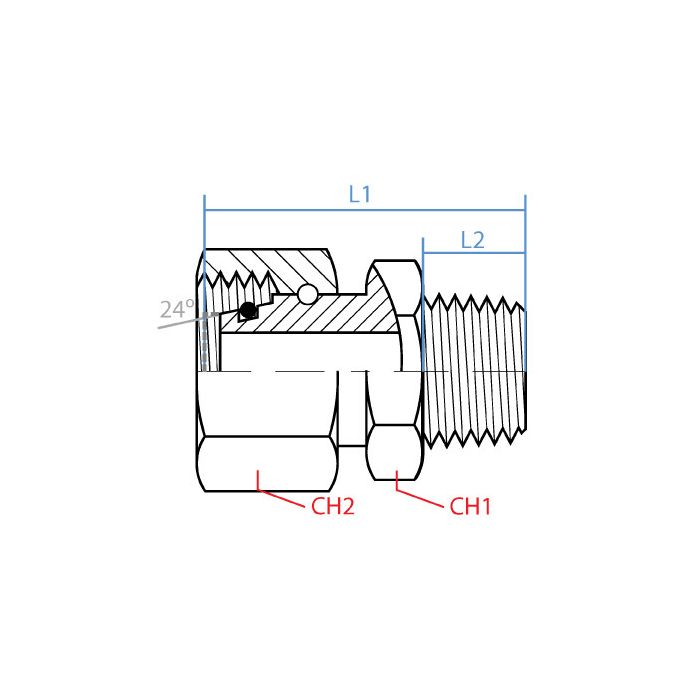

CH1 Width 11mm	CH2 Width 14mm	L1 Length 36.5mm	L2 Length 10mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M12 X 1.5	Side 1 Gender F	Side 1 Size L06	Side 1 Type Din Tube	Side 2 Callout 1/8 - 27 NPTF	Side 2 Gender M	Side 2 Size 1/8"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5307L-06-02	Product Weight 0.08 lbs

Product Questions & Answers 2

Product Questions & Answers

Reckon this here adapter will let me hook up a DIN fitting to somethin' with an NPT port?

Question by: Kent S on Jul 12, 2025, 2:57 PM

Yes, this straight steel adapter is designed to bridge metric DIN tube connections to standard NPT threaded connections, which should make it handy for mix-and-match setups.

Answer by: Customer Support on Jul 13, 2025, 7:31 PM

got a piece of equipment with a 1/8" NPT port and I need to tie into a metric DIN tube line, this adapter gonna bridge that gap?

Question by: Lyle H on May 24, 2025, 4:54 PM

That's exactly what this fitting is built for. One end is a female DIN tube connection with an M12 x 1.5 thread (L06 size), and the other end is a 1/8"-27 NPTF male thread. Steel construction throughout, straight configuration, so it threads right into your NPT-ported equipment and accepts your DIN tube line on the other side without any intermediate adapter stack.

Answer by: Customer Support on May 26, 2025, 1:24 PM
