F Din X Mbspp Es Seal

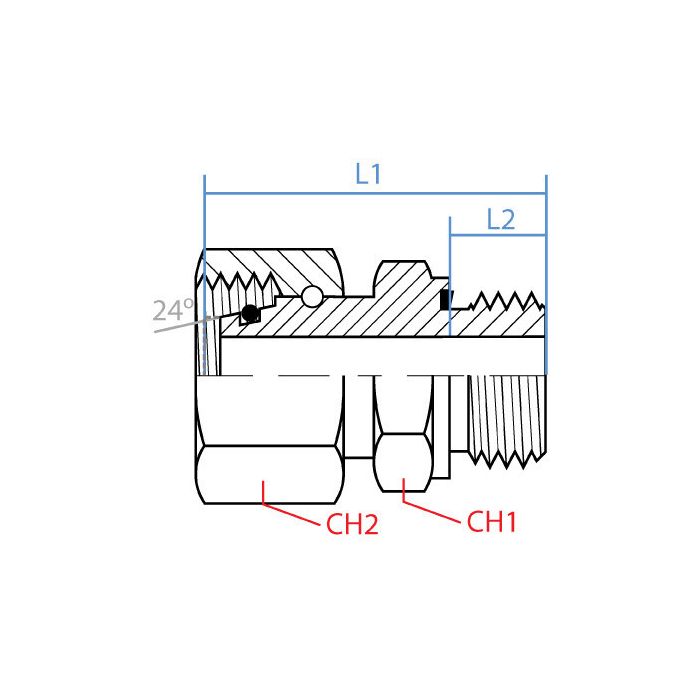

CH1 Width 55mm	CH2 Width 60mm	L1 Length 82mm	L2 Length 22mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M52 X 2.0	Side 1 Gender F	Side 1 Size S38	Side 1 Type Din Tube	Side 2 Callout G 1-1/2 - 11	Side 2 Gender M	Side 2 Size 1-1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5302S-38-24	Product Weight 1.83 lbs

Product Questions & Answers 2

Product Questions & Answers

Is this thing steel all the way through? Just want to make sure it can handle what I'm throwin' at it.

Question by: Janice A on Dec 7, 2025, 8:31 AM

Yes sir, this fitting is constructed entirely from steel, so it should be able to hold up in demanding industrial hydraulic applications.

Answer by: Customer Support on Dec 9, 2025, 6:44 AM

Got a hydraulic line running M52 x 2.0 DIN tube on one end that needs to tie into a G 1-1/2 - 11 BSPP port, this fitting handle that crossover?

Question by: Stan S on Nov 9, 2025, 5:10 PM

That's what this one's built for. One side is a female DIN tube connection sized at M52 x 2.0, and the other is a male BSPP at G 1-1/2 - 11. Steel construction, straight configuration, so there's no angling involved. Overall length runs 82mm with an L2 measurement of 22mm, which helps when space is a little tight around the connection point.

Answer by: Customer Support on Nov 11, 2025, 3:01 PM
