F Din X Mbspp Es Seal

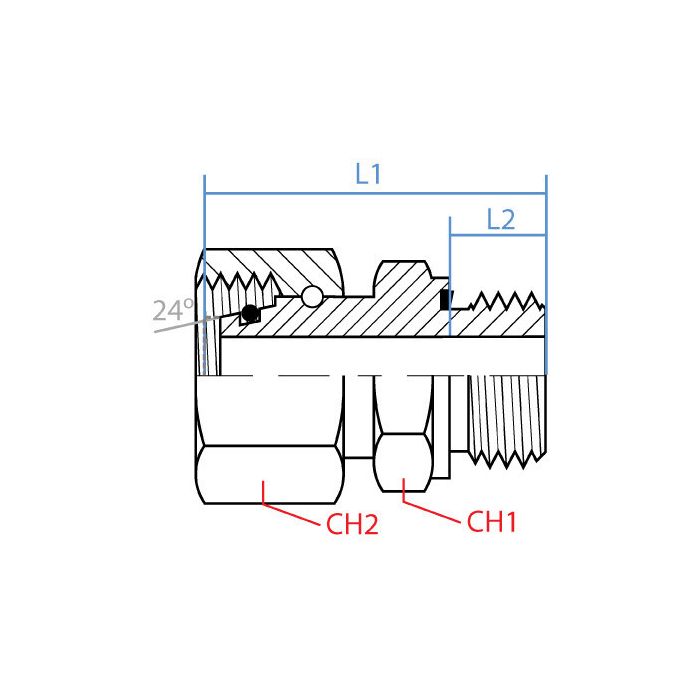

CH1 Width 32mm	CH2 Width 36mm	L1 Length 59mm	L2 Length 16mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M30 X 2.0	Side 1 Gender F	Side 1 Size S20	Side 1 Type Din Tube	Side 2 Callout G 3/4 - 14	Side 2 Gender M	Side 2 Size 3/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5302S-20-12	Product Weight 0.55 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this here adapter work to connect a M30 x 2.0 DIN tube to a G 3/4 - 14 BSPP?

Question by: Lance C on Jun 28, 2025, 12:24 PM

That's exactly what it's for. This F DIN X Mbspp Es Seal adapter is designed to connect those two hydraulic connections securely.

Answer by: Customer Support on Jun 30, 2025, 6:45 AM

Got a line running M30 x 2.0 DIN tube on one end and need to tie into a 3/4 BSPP male port on the other, this the right adapter for that?

Question by: Rex B on Mar 23, 2026, 6:50 AM

Yeah, that's exactly what this one's built for. Side 1 is a female M30 x 2.0 DIN tube connection and Side 2 is a male G 3/4-14 BSPP, so it bridges those two thread types in a straight configuration. Steel construction, 59mm overall length, made by Adaptall. If those specs match your line, it'll fit right in.

Answer by: Customer Support on Mar 25, 2026, 6:26 AM
